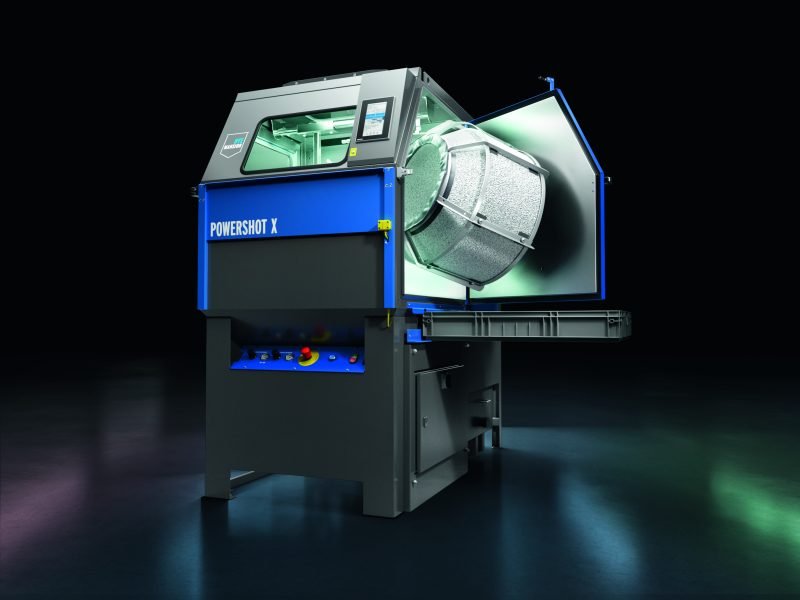

DyeMansion Powershot X
A comprehensive, flexible solution for diverse post processing needs.
Suited for powder-bed processes, such as Multi Jet Fusion (MJF) and Selective Laser Sintering (SLS).
Accessible for both small-scale users and larger production operations seeking efficient, adaptable equipment with a strong ROI.
Designed as a single system with Cleaning & Surfacing functions, Powershot X provides versatility that allows customers to easily switch between processes based on their requirements.
Solution PROCESS
Clean and smooth your powder-based 3D printed parts
- New features include an updated basket design and fixed nozzle mount
- Automated anti-static injection
- Cleaner processing and consistently high-quality results.
For users who prioritize both immediate productivity gains and long-term adaptability in their production lines.
DyeMansion Powershot X Features
Flexible Cleaning and Surfacing of 3D printed parts with the DyeMansion Powershot X
Process Flexibility
The system offers unmatched adaptability, allowing users to tailor the post-processing setup precisely to their current production demands. From initial cleaning to detailed surface finishing, operators can adjust the system's parameters to meet specific requirements.
New Basket and Lining Design
The design not only minimizes residual particles but also ensures the chamber remains pristine, reducing downtime for cleaning and maintenance.
Antistatic Injection Nozzle
By reducing static buildup, the antistatic agent prevents powder and media from adhering to parts and chamber surfaces, which enhances the overall quality and efficiency of the cleaning process.
Fixed Nozzle Mount
The new fixed nozzle mount ensures a precise, stable setup that maintains the optimal distance and alignment of the nozzles, delivering reliable, repeatable results across batches.
Vacuum Cleaner Interface
By connecting effortlessly to the vacuum cleaner, operators can remove accumulated dust without direct handling, reducing exposure to particles and enhancing safety.
DyeMansion Powershot X Benefits
Streamlined design focused on essential functions - a practical choice for any user.
One system, three technologies

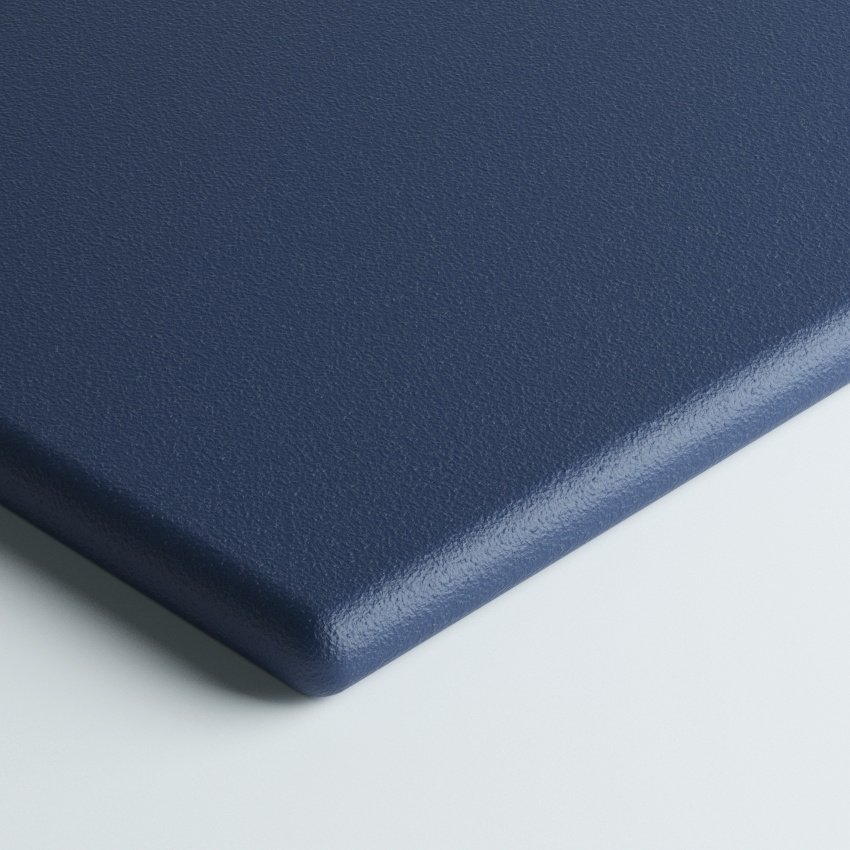

PolyShot Cleaning is necessary for any powder bed-based 3D printing and sets the course for achieving reproducible results. PolyShot Surfacing delivers a matt-glossy surface with improved scratch resistance and a pleasant feel for your end-use application. The combined PolyShot Cleaning & Surfacing process offers the option of applying a quality-enhancing finish to your parts during the obligatory de-powdering process.
Maximum flexibility for your workflow
Three different modes make the Powershot X the flexible solution for automated post-processing. This allows you to adapt the system to changing production requirements on short notice – in terms of quantity and quality. You can convert the machine yourself using optimized setting parameters. If production volumes increase in the long term, you can flexibly expand your workflow with the system.
Low investment with ensured ROI
Low initial investment, reduced personnel costs, little space requirement and variable application options. With the Powershot X, your return on investment is ensured, regardless of what your budget is allocated for: automated part cleaning, sophisticated end-use product quality or as a flexible back-up option for your Print-to-Product workflow.
Solution
Minimal effort is required to switch between the cleaning and surfacing processes or media.
Separating the Cleaning and Surfacing processes across dedicated machines avoids the need to constantly switch media and settings, providing optimal results.
The Powershot X is versatile, functioning as a standalone solution for smaller operations and as part of a multi-system layout with dedicated machines for scaling and series production.
DyeMansion Powershot X Technical Data
| Fonctionnalité | Détails |
|---|---|
| AUTOMATION | Individual programming and control of process parameters via control panel and touch screen |
| PERFORMANCE | |
| Durée du cycle | Variable: Cleaning: 5 - 15 min / Surfacing: 10 - 20 min / Cleaning & Surfacing: 20 - 40 min |
| Capacité par tirage | Up to 3/4 EOS P396, 1x HP Jet Fusion 4200/5200 or close to 1.5x Stratasys H350 build jobs |
| Effective volume of basket | 26l | 6.8gal |
| DIMENSIONS | |
| Système (L x L x H) | 1700mm x 1310mm x 2030mm | 66.9inch x 51.6inch x 79.9inch |
| Encombrement recommandé | 2500mm x 3050mmx 2300mm | 98.4inch x 120.1inch x 90.6inch |
| POIDS | |
| Système | 480kg | 1058lb |
| POWER SUPPLY | |
| Approvisionnement | 1.5kW |
| Exigences | 400V, 50Hz, 16A oder 208V, 60Hz, 20A |
| AIR COMPRIMÉ | |
| Consommation | 2.0m /min at 6bar | 70.3cfm at 87psi |
| Input Pressure | Minimum: 6bar | 87psi Maximum: 8bar | 116psi |
| ÉMISSION DE BRUIT | |
| Niveau sonore | < 80dB(A) |
