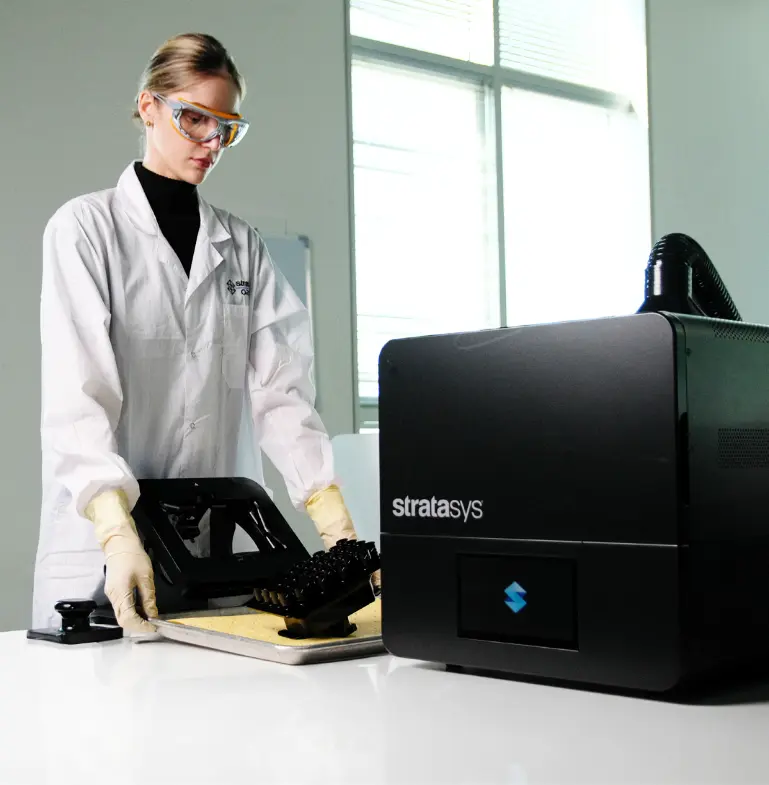

Take a look at the Stratasys Origin Cure
Optimize your Stratasys Origin workflow with the Origin Cure
Control accuracy and part properties during curing
Unlock the full potential of your 3D prints with the Stratasys Origin Cure, the ultimate solution for post-processing that ensures your printed parts achieve their maximum performance and durability.
Engineered to lock in accuracy, repeatability, and detail of your Origin printed parts to deliver consistent and reliable results.
Stratasys Origin Cure Features
The ultimate solution for post-processing Origin parts
Ensure part uniformity
A 360-degree, multi-wavelength and high-intensity LED cure ensures uniformity and upholds the intricate design elements.
Conception adaptée au bureau
The Stratasys Origin Cure is like any other desktop house appliances, a “plug and play” system.
Long lifespan
Origin Cure’s custom built LED panels boast a >5,000-hour lifespan, for low maintenance and a curing process that you can rely on time and time again.
Very easy and intuitive
Ease of use is a cornerstone of the Origin Cure system, featuring predefined programmable cure profiles that are specific to each material, reducing the potential for human error.
Stratasys Origin Cure Benefits
Benefits of using the post-processing machin

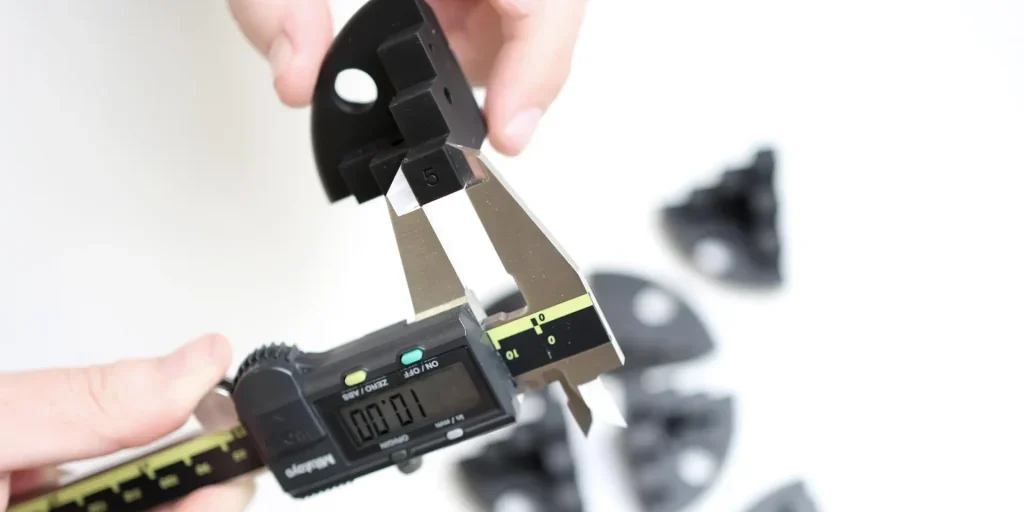

Maintain Accuracy and Repeatability
Origin Cure maintains the accuracy of your parts as they come off the printer. Using Origin Cure in combination with your Stratasys Origin Two printer allows for repeatable end use production parts.
The Origin Cure utilizes advanced UV curing technology to deliver uniform and controlled exposure. This ensures that each part receives the optimal amount of light, enhancing the strength and accuracy of your prints.
Easy and Reliable Curing
The Origin Cure utilizes advanced UV curing technology to deliver uniform and controlled exposure. This ensures that each part receives the optimal amount of light, enhancing the strength and accuracy of your prints.
A user friendly interface makes it easy for operators. The intuitive controls simplify part curing. The 360 degree UV curing eliminates the need for manual labor to flip parts, reducing hands on time.
Optimized for Various Materials
Compatible with a wide range of photopolymer materials and loaded with settings to cure performance materials. The programmable UV settings eliminates the need for manual calibrations with additional tools such as irradiance or radiometers.
Compliance and Safety
The Origin Cure was developed with safety in mind and meets NRTL standards. The Origin Cure works in tandem with the Stratasys ProAero filtration unit to remove any VOCs for a safer workplace. The traceability allows for enhanced quality assurance procedures.
For Stratasys Origin Two 3D Printer
The Stratasys Origin Two is a state-of-the-art resin 3D printer that promises to redefine the landscape of production 3D printing by addressing some of the most pressing challenges in modern manufacturing.
The Origin Two boasts enhanced accuracy and production speed. The printer integrates advanced motion controls, which ensures exceptional precision in producing detailed and complex parts quickly.
Stratasys Origin Cure Specifications
Unparalleled versatility
| Spécifications | Description |
|---|---|
| Light Engine | UV LED arrays with multiple wavelengths: 365nm, 385nm and 405nm in each array UV intensity uniformity and 360 degree curing within the chamber (no timing nor part flipping required) |
| Calibration | Automatic intensity monitoring and LED adjustment using two built-in sensors and software |
| Chamber Dimensions | Max 370 mm x 108 mm x 192 mm (14.56” x 4.25” x 7.56”) |
| Logiciel | Touchscreen user interface Programmable intensity ramps/times set per material with the current portfolio of materials pre-loaded Possibility for users to create their own material recipes |
| Intensity Output range | Up to 450 mW / cm2 total intensity at chamber center (up to 150mW / cm2 for each wavelength) |
| Exigences en matière d'alimentation | 100-240 Vac, 50/60Hz |
| System Size and Weight | 450 mm x 430 mm x 410 mm (17.71” x 16.93” x 16.14”) 36.74 kg (81 lbs) |
| Conformité réglementaire | CE, UKCA, RoHS, FCC & Industry Canada Health & Safety The only DLP printer protected with VOC solution – Compatibility with Stratasys ProAero™ to automatically evacuate VOCs in the chamber after each cycle |

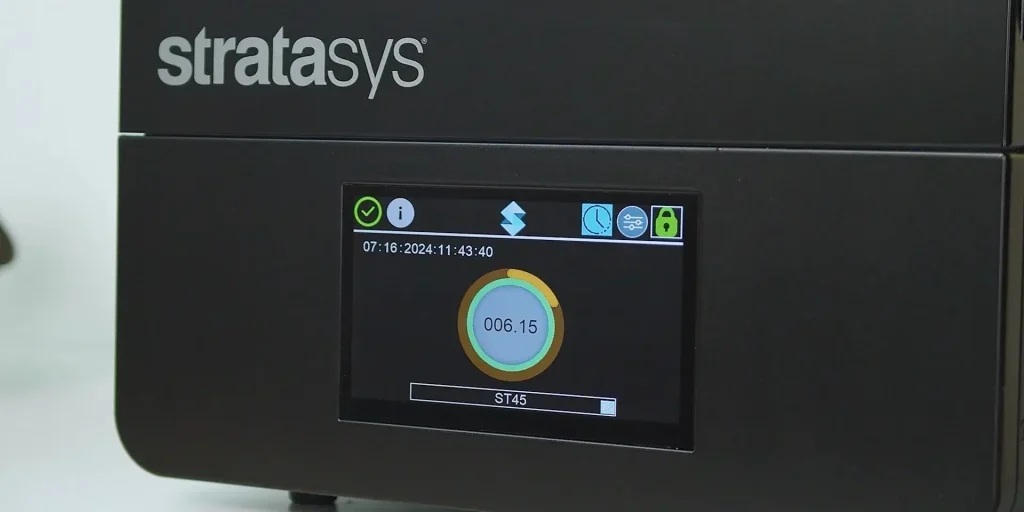

360 Curing Process
Streamlined and time-saving post-processing. A 360-degree and full build volume curing, and a faster, no-flip process results in a more streamlined and time-saving post-processing, ensuring that production remains both efficient and reliable.
The 360-degree curing process eliminates the need for flipping parts over to achieve proper cure on all sides. The programmable mechanism with multiple wavelengths provides more control of the material properties. Preprogrammed cure profiles per material allow for easy, one-click operation.
Users with OpenAM™ License have the option to create their own curing programs for more control.
Quality Control and Traceability
The system provides traceability features for detailed tracking and enhanced quality assurance.
Services pour imprimantes 3D
Impression 3D Productivité et maintenance avec les services Javelin
Support technique
Avec notre service d'abonnement aux imprimantes 3D, vous avez accès à l'aide étendue de nos experts en impression 3D. Ceux-ci amélioreront votre investissement matériel à l'adresse et vous guideront dans les défis de développement.
Avantages
- Assistance technique en direct par notre équipe d'assistance certifiée.
- Assistance sur site pour résoudre votre problème technique directement sur votre machine.
- Communication régulière des mises à jour du logiciel de l'imprimante 3D et des conseils et astuces techniques.
En savoir plus sur notre service d'abonnement aux imprimantes 3D "
Entretien et matériel
Lorsque vous achetez une nouvelle imprimante 3D de Javelin, nos contrats de service vous offrent des coûts de maintenance prévisibles et des cycles d'achat simplifiés pour les pièces de rechange, le service et les consommables/matériaux.
Avantages
- Service annuel sur site de votre machine
- Obtenez des matériaux et des pièces de rechange pour imprimantes 3D directement auprès de nous.
Prix exclusifs pour l'éducation
Contactez-nous pour en savoir plus sur les tarifs éducatifs et les contrats de maintenance pour les établissements d'enseignement.
Formation sur les imprimantes 3D
Notre formation et notre encadrement exclusifs en matière d'impression 3D vous montreront comment optimiser et imprimer vos modèles 3D de manière plus rentable pour devenir un expert en fabrication additive :
Caractéristiques
- Apprenez à imprimer vos créations 3D en toute confiance
- Comprendre la technologie d'impression 3D et l'utilisation des matériaux
- Réduisez votre temps et vos coûts d'impression 3D
Is the Stratasys Origin Cure right for you?
Appelez-nous gratuitement au 1-877-219-6757 et obtenez des réponses à vos questions.
