Water Jet Cutter Demo
Simply plug the water jet into any standard power socket and load with abrasive.

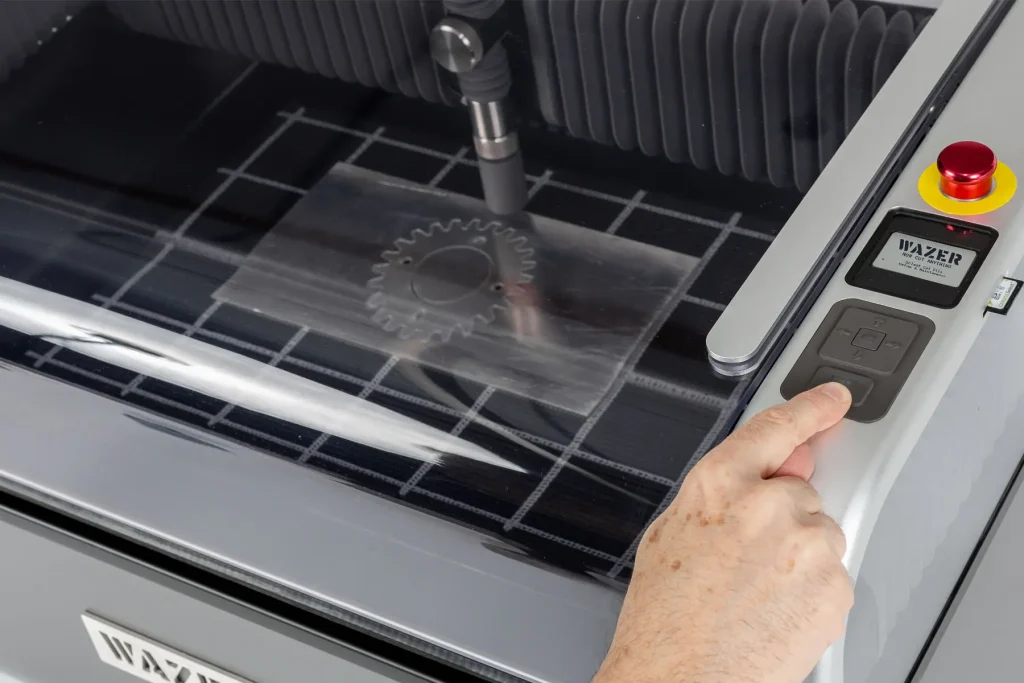

Input your memory card containing the SVG or DXF file, press 'Start' and watch your shape being cut.
The water jet has been carefully designed so that it can be used in any workshop.
WAZER Cutting Process
3 steps to get your part
1. Upload your design
Prepare your design for waterjet cutting with the free, web-based software.
2. Load Your Material
Load any material that fits inside the water jet machine and fasten it in place.
3. Cut Your Part

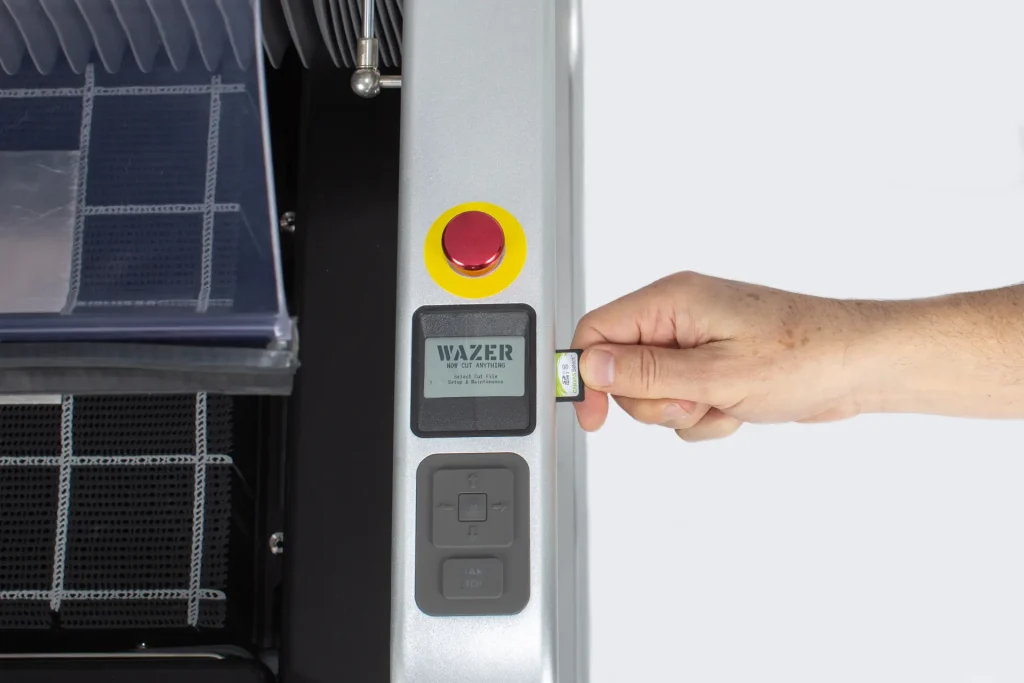

Transfer your cut file to WAZER with an SD card, and let the water jet take it from there to create your cut pieces.
Exemples de pièces

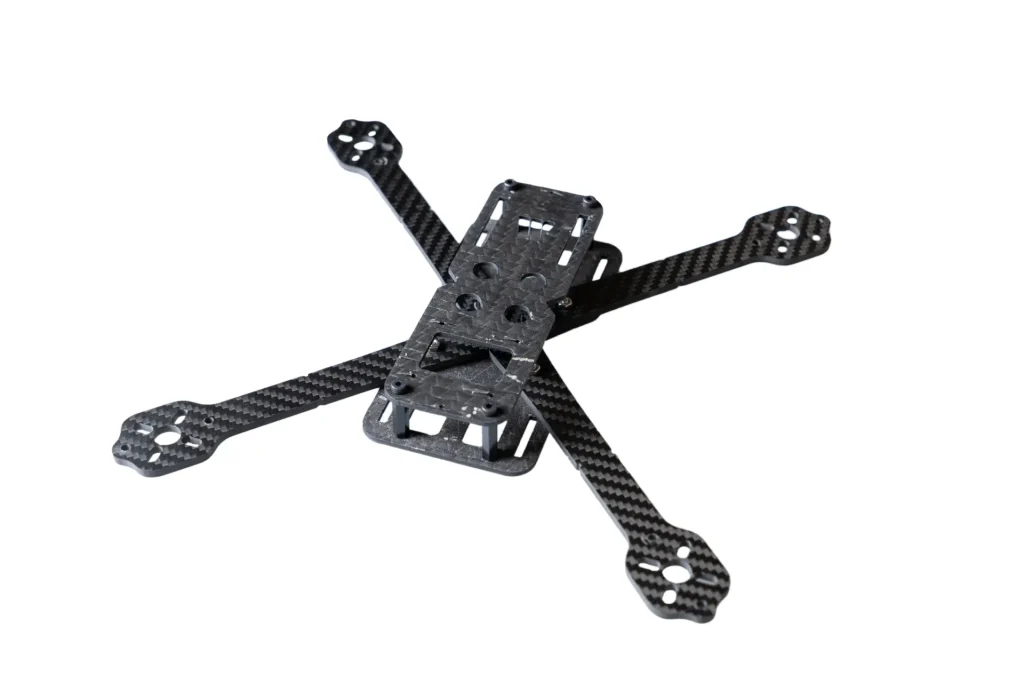

Example processed parts that have been cut with a WAZER, pick on the images below to enlarge:
Cutting Materials
WAZER can cut through the following materials at a maximum cutting thickness
Aluminium 6061
WAZER Desktop > Max thickness: 0.5″ / 13mm
WAZER Pro > Max thickness: 1.0″ / 25.4mmBoro Glass
WAZER Desktop > Max thickness: 0.5″ / 13mm
WAZER Pro > Max thickness: 1.0″ / 25.4mmFibre de carbone
WAZER Desktop > Max thickness: 0.313″ / 8mm
WAZER Pro > Max thickness: 1.0″ / 25.4mmHDPE
WAZER Desktop > Max thickness: 0.5 – 0.75″ / 13-18mm
WAZER Pro > Max thickness: 1.0″ / 25.4mmLow Carbon Steel
WAZER Desktop > Max thickness: 0.188″ / 5mm
WAZER Pro > Max thickness: 0.375″ / 10mm
Marble
WAZER Desktop > Max thickness: 0.5″ / 13mm
WAZER Pro > Max thickness: 1.0″ / 25.4mmSilicon
WAZER Desktop > Max thickness: 0.5 – 0.75″ / 13-18mm
WAZER Pro > Max thickness: 1.0″ / 25.4mmAcier inoxydable
WAZER Desktop > Max thickness: 0.5″ / 13mm
WAZER Pro > Max thickness: 1.0″ / 25.4mmAcier à outils
WAZER Desktop > Max thickness: 0.5″ / 13mm
WAZER Pro > Max thickness: 1.0″ / 25.4mm
WAZER Water Jet Cutter Specifications
WAZER is available in two configurations, the WAZER Desktop and WAZER Pro. Compare the two CNC machines below:
WAZER Desktop & Pro Essential Specs
- Cutting Area: 12" x 18" (305 mm x 460 mm)
- Kerf (width of cut): 0.044" (1.2 mm)
- Abrasive Usage: 0.33 lb/min (140g-150g/min)
- Software: Free, web-based
- File Types: .dxf, .svg
- Warranty: 1 year
Advantages of WAZER Pro
- WAZER Pro is much more powerful:
- WAZER Pro cuts 2-4x faster, with the same amount of abrasive used.
- WAZER Pro cuts material that’s twice as thick as WAZER Desktop.
- WAZER Pro is much more productive:
- WAZER Pro provides 3-6x more continuous cutting compared to WAZER Desktop.
- WAZER Pro collects all the used abrasive while cutting, minimizing downtime.
WAZER Desktop
WAZER Pro
| Desktop Cutting |
|---|
| 0.8 kW hydraulic power |
| 12″ x 18″ cutting area |
| Kerf (width of cut) 0.044″ |
| Continuous cutting: 60 minutes |
| Pro Cutting |
|---|
| 2.1 kW hydraulic power |
| 12″ x 18″ cutting area |
| Kerf (width of cut) 0.044″ |
| Continuous cutting: 90 minutes |
| Absolute-zero locating for fixturing & repeatability |
| Underwater cutting for quiet operation |
| Desktop Abrasive |
|---|
| 80-mesh alluvial garnet |
| Abrasive rate: 0.33 lb/min (0.15 kg/min) |
| Collects some unused abrasive during cutting. Tank-cleaning cycles are required afterwards to collect remaining abrasive. |
| Uncollected abrasive on the bottom of the tank can clog the system, requiring draining the tank and scooping abrasive out by hand. |
| Pro Abrasive |
|---|
| 80-mesh alluvial garnet |
| Abrasive rate: 0.33 lb/min (0.15 kg/min) |
| Accidental abrasive pileup on the bottom of the tank does not clog the system. Abrasive collection system is always recoverable without the need to scoop by hand. |
| Desktop Electrical Power |
|---|
| North America: 120V / 60 Hz / 16.1A / 1700W |
| International: 220V / 9.5A / 1700W |
| Pro Electrical Power |
|---|
| North America: 220V / 60 Hz / 16.1A / 3700W |
| International: 220V / 16.1A / 3700W |
