Add SOLIDWORKS Cut-List Property to All Cut-List Items at a Time

Article by Sanja Srzic updated June 15, 2017

Article

When a new SOLIDWORKS Cut-List Property is needed in multiple cut-list items, the weldment feature can be used to add the property to all cut-list items at a time.

Right-click on the Weldment feature in the design tree and select Properties.

Access Weldment Properties

Access Weldment Properties

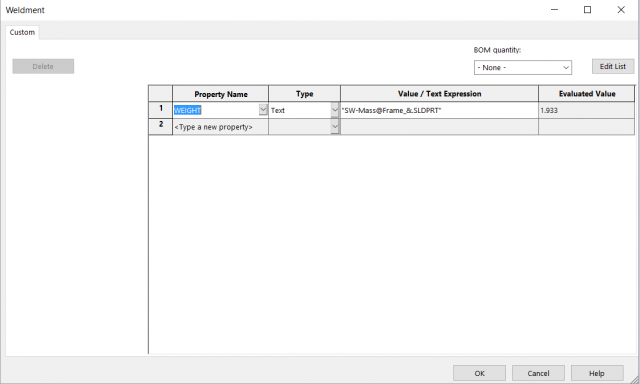

Add the name of the new property and confirm OK.

Custom Properties dialog

Custom Properties dialog

In this example, the ‘Weight’ property has been added and linked to the mass.  As a result, the new property is applied to all weldment cut-list items.

SOLIDWORKS Cut-List Property

Properties Added
