Hole Wizard Thread Data Not Found When Using Newly Created Hole

Article by Joe Medeiros, CSWE created/updated July 15, 2015

The ‘Hole Wizard Thread Data Not Found’ error message may appear when using a newly created Hole Wizard hole. This is usually the result of a mismatch between the Size in the Sizes Tab…

Toolbox Size

Toolbox Size

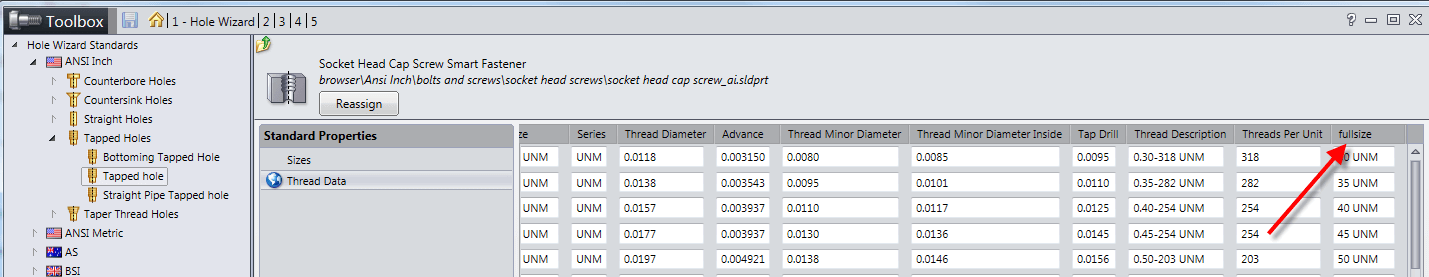

…and the Full Size in the Thread Data tab, as shown below

Toolbox Thread Data

Toolbox Thread Data



To avoid the error copy the contents of the Size cell into the Full Size cell. A restart of SOLIDWORKS may be required to complete the change.
