SOLIDWORKS Compare and DrawCompare Tools

Article by Scott Durksen, CSWE created/updated April 9, 2019

SOLIDWORKS Compare gives you the ability to find slight differences between two models.  Perhaps you receive an updated model back and are not sure of all the changes made.  The Compare tool can find slight differences in:

  • Document Properties
  • Features
  • Geometry, or
  • Bill of Materials

SOLIDWORKS Compare Tool

Compare Parts, Assemblies or Drawings

Choose two models and select the items to compare.  You can use the tool to compare Parts, Assemblies or Drawings.  Some items may not be available in different situations.  For example this is comparing two part files so we cannot select Bill of Materials.

SOLIDWORKS Compare Task Pane

Document Properties

Once the Compare is complete, there will be tabs for each criteria with results.  The first item is Document Properties.  These files have differences between file size, last save date, mass properties, annotation display and units.

SOLIDWORKS Compare Document Properties

SOLIDWORKS Compare Document Properties

Feature Comparison

The second item is feature comparison.  It will indicate if there are unique (separate) features between the two parts or if there is change in an existing feature.  In this case there is only one difference with the Chamfer feature.  Selecting the features shows a modified value.

SOLIDWORKS Compare Features

SOLIDWORKS Compare Features

Geometry Comparison

Lastly we found changes in Geometry.  You can view by Volume comparison or Face comparison.  In this case the Unique Faces provides an indication that the fillet has been changed.

SOLIDWORKS Compare Geometry

SOLIDWORKS Compare Geometry

Use DrawCompare for Drawings

This tool can be used to compare drawings for its Document Properties and Bill of Materials.  However there is another tool called DrawCompare to provide graphical feedback of differences on the drawing sheet.  You can see any additions or removals between the two documents.

SOLIDWORKS DrawCompare

SOLIDWORKS DrawCompare



SOLIDWORKS DrawCompare Additions

SOLIDWORKS DrawCompare Additions

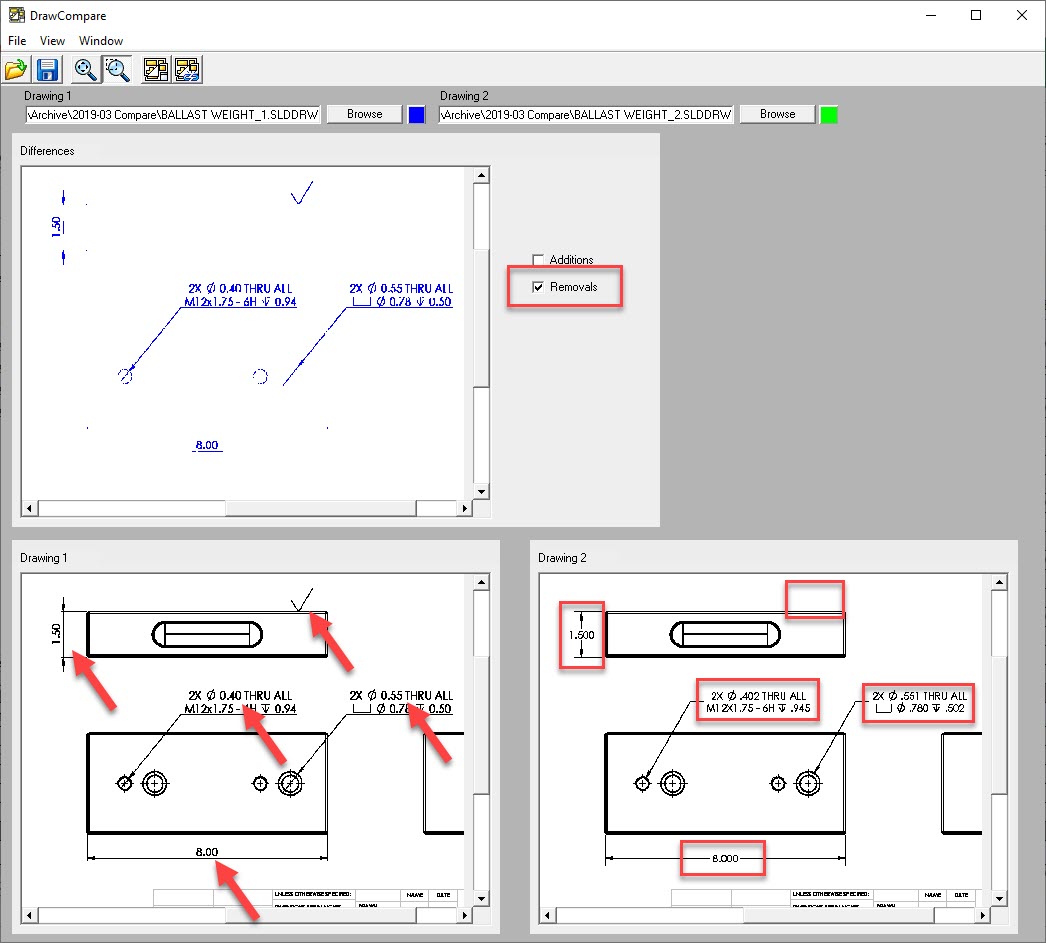

SOLIDWORKS DrawCompare Removals

SOLIDWORKS DrawCompare Removals
