Import Package with 3DEXPERIENCE Exchange Add-In

Article by TriMech Solutions, LLC updated August 31, 2022

Article

SOLIDWORKS Packages provide a new way for engineers to collaborate on designs with users outside of their organization. When sharing an assembly with an external collaborator, we typically end up with bundles of files that must be zipped and unzipped, and file suffixes like “-version2_done_withEdits_FINAL”. Importing Packages keeps assembly files all in one place, with the ability to control which files can be edited/read-only and track which files have been modified. Keep reading to learn how to import a SOLIDWORKS Package file.

SOLIDWORKS Package File

The SOLIDWORKS Package File has the extension “.sldpkg”. This can be imported using one of these products:

  • SOLIDWORKS Connected (3DEXPERIENCE SOLIDWORKS)
  • Collaborative Designer for SOLIDWORKS
  • SOLIDWORKS with the free “3DEXPERIENCE Exchange” add-in

The package file contains everything needed to open the assembly which was “packaged” and will track which files have been modified.

How to Import a Package with 3DEXPERIENCE Exchange for SOLIDWORKS

  1. First, make sure the “3DEXPERIENCE Exchange” Add-in is turned on inside SOLIDWORKS.

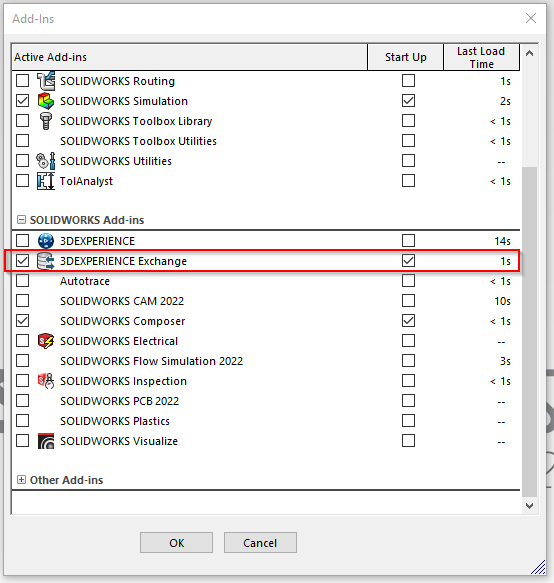

    3DX Exchange Add-in

    3DEXPERIENCE Exchange Add-in

  2. Navigate to the 3DEXPERIENCE Exchange tab and select Import Package.
    Select Import Package
  3. In the “Import Package” Window, click the “Open” icon to navigate to the “.sldpkg” file you received. Importing this package will create a working folder with the default location C:\Users\[YourName]\Documents\3DEXPERIENCE_Workspace.

    import package window

    Import package window

  4. After the package is imported, the window on the right will show which files can be edited or are set to read-only.

Editing Files inside of Package

Now that the package is imported, you can right-click and open any of the files in the 3DEXPERIENCE Exchange task pane on the right. At any time, you can use the Refresh button to see the updated status of the files you have modified.

editing files in package

Editing files in package

When you are done editing the files, be sure to save any files that were modified, they will be saved into the local working folder specified in Step 3 above.

Export Package

When you are ready to return the modified package to the original sender, navigate to Package, Export. From here you will save an updated “.sldpkg” file which can be sent back to the 3DEXPERIENCE user you are collaborating with.

Export package

Export package
