New in SOLIDWORKS Inspection 2018: Renumbering Balloons

Article by Sanja Srzic updated November 28, 2017


SOLIDWORKS Inspection renumbering balloons is as easy as double-clicking the characteristic cell and overwriting the default value.

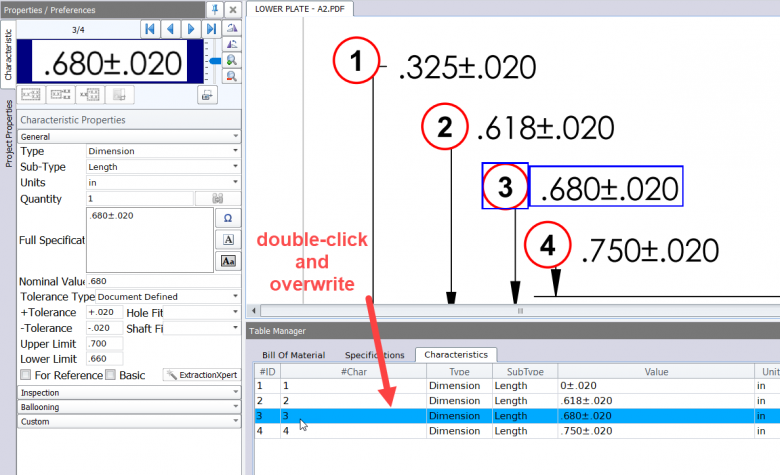

Double-click & overwrite

Double-click & overwrite

Characteristics below the overwritten value continue in increments of one.

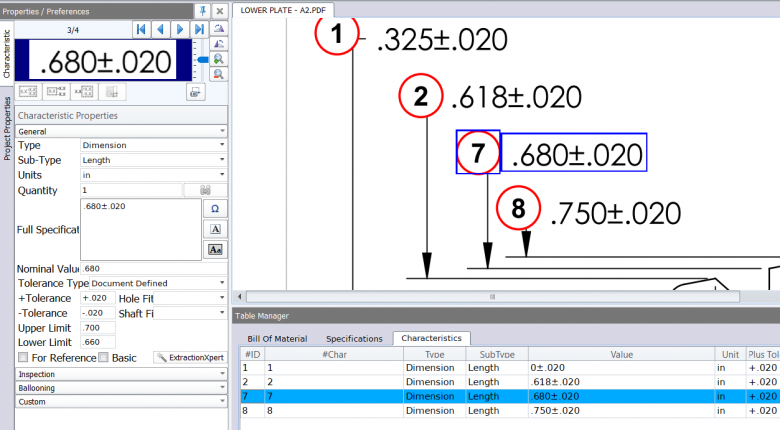

SOLIDWORKS Inspection Renumbering Balloons

Overwritten value continue in increments of one

Only balloons of the default sequence can be renumbered.  Renumbering does not work for the balloons that use custom sequence.
