ZEISS GOM Scan 1

A small 3D scanner for high standards

A small scanner for precise meshes and big ideas

ZEISS GOM Scan 1 is here to open up new possibilities. Industrial standards such as GOM fringe projection technology and Blue Light Technology deliver the foundation for detailed and accurate 3D meshes.

Meanwhile, the integrated software GOM Inspect helps you apply the mesh to any project you want: 3D printing, reverse engineering or part inspection. So, go ahead and start something big.

GOM Scan 1 measuring volume

A powerful 3D scanner

GOM Scan 1 features a compact shape and robust design filled with advanced technologies. From GOM’s Blue Light Technology to the stereo camera principle, this sensor is built to deliver 3D data with high precision.

Small, mobile and super easy to use

The lightweight solution allows you to capture 3D data intuitively. Easy to operate, GOM Scan 1 is the specialist for simple and fast measurements of small to medium-sized parts – even in confined spaces.

Fast and precise

GOM Scan 1 with pre-installed GOM Inspect takes meshes to the next level. You can rely on high quality data, generate precise meshes and get your 3D data easily and fast.

A software that guides you

GOM Scan 1 operates with GOM Inspect, the well-established standard in 3D metrology. Powerful mesh editing functions make it an ideal tool for 3D printing and reverse engineering. What’s more, you can effortlessly handle simple and complex tasks throughout your inspection process. A software to simplify and speed up your workflow.

ZEISS GOM Scan 1 Features

Fast and precise 3D scanning

GOM Scan 1 self monitoring

A self monitoring system for real life issues

Due to the stereo camera principle, the sensor recognizes changing ambient conditions during operation and can compensate for these changes. To ensure the quality of the measuring data, the software of the sensor continuously monitors the sensor status.
GOM Scan 1 measure inspect

Choose your measuring volume

Different applications have different requirements. GOM Scan 1 is available in three versions with the measuring volumes: MV 100, MV 200 and MV 400. With all three sensors you can rely on high-precision measurements for small to medium-sized objects.

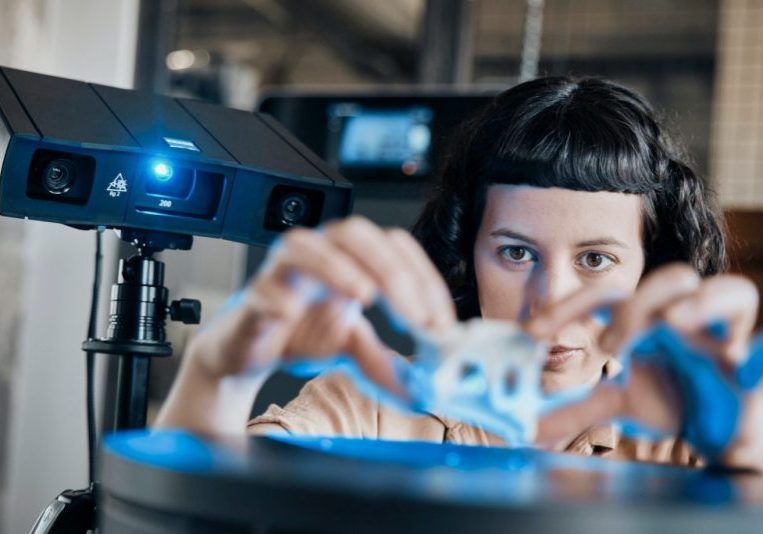

GOM Scan 1 blue light

Precision in all lighting conditions: GOM’s Blue Light Technology

The projection unit of the new GOM Scan 1 is based on Blue Light Technology. Since the sensor works with narrowband blue light, interfering ambient light can be filtered during image acquisition. Due to its powerful light source, short measuring times can be achieved.
GOM Scan 1 fringe protection

Get there fast with fringe projection

GOM Scan 1 is an optical 3D fringe projection scanner. It captures the complete surface of components with blue fringe projection and delivers detailed resolution in no time.

Specifications

Compare the GOM Scan 1 model 100, 200 and 400

SpecsGOM Scan 1 (100)GOM Scan 1 (200)GOM Scan 1 (400)
Points per scan6 million6 million6 million
Point distance 0.037 mm0.060 mm0.129 mm
Measuring area100 x 65 mm²200 x 125 mm²400 x 250 mm²
Working distance400 mm450 mm500 mm
Light source LEDLEDLED
Weightapprox. 2,5 kgapprox. 2,5 kgapprox. 2,5 kg
Dimensions290 x 215 x 80 mm³290 x 215 x 80 mm³290 x 215 x 80 mm³
Cable length 5 m5 m5 m
ConnectionUSB 3USB 3USB 3
Operating systemWindows 10Windows 10Windows 10
SoftwareGOM InspectGOM InspectGOM Inspect

Industries

GOM 3D Scanners are used in a wide variety of industry applications

Reverse Engineering

Industrial design and manufacturing

Medical and Life Sciences

Science and education

Art and design

  • Product design
  • Customization
  • 3D documentation
  • Reverse engineering
  • Quality control
  • Rapid prototyping
  • Aerospace
  • Orthopedics
  • Prosthetics
  • Plastic surgery
  • Custom wheelchairs
  • Research
  • Training
  • Online museums
  • Heritage preservation
  • Architecture
  • CGI
  • Fashion

Software

Revolutionary 3D scanning and data processing software

GOM Inspect Software

GOM Scan 1 operates with GOM Inspect, the well-established standard in 3D metrology. Powerful mesh editing functions make it an ideal tool for 3D printing and reverse engineering.

What’s more, you can effortlessly handle simple and complex tasks throughout your inspection process. A software to simplify and speed up your workflow.

Why use a GOM Scanner

Capture, Validate, and 3D Print your data

GOM Scan 1 capture part

Capture and create your ideas

The GOM Scan 1 with GOM Inspect supports tasks such as 3D printing, 3D models of a part and reverse engineering. It captures high quality data in a short amount of time while the powerful mesh editing functions make it easy to replace parts, produce precise 3D models or develop new products. Whatever your idea, GOM Scan 1 meets professional and industrial standards to make it happen.

ZEISS GOM 3D Scanner

Measure and inspect your products

GOM Scan 1 with GOM Inspect is a system to support your entire workflow. It helps you to get accurate and comprehensive measurement results and makes part inspection effortless. Import and align CAD and mesh files, create surface comparisons and inspection sections and generate reports – easily and efficiently.

GOM Scan 1 reverse engineering

Use a GOM Scanner for

  • 3D printing
  • Reverse engineering & manufacturing
  • Metrology and verification
  • Virtual display or 3D models
  • Research and education
  • Art and heritage
  • Design
  • Healthcare

Interested in a ZEISS GOM Scan 1 3D Scanner?

Call us free at  1-877-219-6757  and get your questions answered
