Stratasys F123CR Series

Augment your Machining & Production with Composite 3D Printing

Take a look at the Stratasys F123CR (Composite Ready) Series

Supplement your fixture and part fabrication with FDM composite 3D printing to gain speed, throughput, and cost benefits:

Meet deadlines and stay on budget with high-strength composite printing.

Make work holding fixtures, soft jaws, and component parts with composite 3D printing in a fraction of the time and cost it takes to machine a metal equivalent. F123CR printers supplement traditional fabrication technologies, allowing industrial manufacturers to replace metal components with high-strength 3D printed composite parts.

This accelerates throughput while avoiding the opportunity cost of using production resources or the lead time of outsourcing.

Stratasys F123CR Series Key Features

F123CR composite series printers have multiple features designed for ease of use and high uptime:

Stratasys F190CR

Heated Build Chamber

The fully heated build chamber enables consistent print results with multiple infills from sparse to fully dense.

Monitor Your Production

A built-in camera provides visual remote print monitoring, plus GrabCAD Print™ and Insight™ software provide a simple workflow and in-depth print process control.

Automatic Material Change

Auto changeover capability on the Stratasys F370CR extends print times and printers are mounted on casters for easy mobility.

Multiple FDM Production Materials

The Stratasys F123CR series gives the option of up to 8 different Fused Deposition Modeling materials (ABS-CF10, ABS-ESD7, ABS-M30, ASA, PC-ABS, TPU 92A, Diran 410MF07, FDM Nylon-CF10) along with easy-to-remove soluble support material.

Stratasys Logo

Stratasys F123CR Series Specifications

Choose from the F190™CR or the F370®CR composite printers:

Feature Stratasys F190CR Stratasys F370CR
Model Materials ABS-M30, ASA, FDM® TPU 92A, ABS-CF10, FDM Nylon-CF10 ABS-M30, ASA, FDM TPU 92A, ABS-ESD7™, PC-ABS™, Diran™ 410MF07, ABS-CF10, FDM Nylon-CF10
Material Delivery 2 material spool bays, 1 for model, 1 for support located in a drawer on the front of the unit 4 material spool bays, 2 for model, 2 for support located in a drawer on the front of the unit
Software GrabCAD Print software, MTConnect enabled GrabCAD Print and Insight software, MTConnect enabled
Build Tray Dimensions 305 mm x 254 mm x 305 mm (12 x 10 x 12 in.) 355 mm x 254 mm x 355 mm (14 x 10 x 14 in.)
System size & weight 1626 x 864 x 711 mm (64 x 34 x 28 in.) 500 lbs ( 227 Kg)
Accuracy Parts are produced within an accuracy of +/- .200 mm (.008 in), or +/- .002 mm/mm
(.002 in/in), whichever is greater
Network Connectivity Wired: TCP/IP protocols at 100 Mbps minimum 100 base T, Ethernet protocol, RJ45 connector
Wireless-ready: IEEE 802.11n, g, or b; Authentication: WPA2-PSK, 802.1x EAP Encryption:
CCMP, TKIP
Operating Environment Operating: Temperature: 15 – 30 ºC (59 – 86 ºF), Humidity: 30 – 70% RH
Storage: Temperature: 0 – 35 ºC (32 – 95 ºF), Humidity: 20 – 90% RH
Power Requirements 100-132V/15A or 200–240V/7A. 50/60 Hz
Operating System Windows 10 (64 bit only) and Window 11 with a minimum of 4GB RAM (8GB or more recommended)

Material Thickness

Layer Thickness 0.013 in.
(0.330 mm)
0.010 in.
(0.254 mm)
0.007 in.
(0.178 mm)
0.005 in.
(0.127 mm)
ABS-M30
ASA
PC-ABS
ABS-ESD7
Diran 410MF07
FDM TPU 92A
ABS-CF10 (1)
FDM Nylon-CF102 (2)
  1. Hardened print head is recommended for extended head life but will also operate using standard F123 and ABS-CF10 print heads.
  2. Dedicated FDM Nylon-CF10 hardened print head required.

Materials available for the Stratasys F123CR

Learn more about Stratasys F123CR materials

ABS-CF10 Pipe Weld Fixture

ABS-CF10

Stratasys ABS-CF10 combines standard ABS 3D printing material with 10% chopped carbon fiber, 50% stiffer and 15% stronger than standard ABS

ABS-ESD7 hard drive fixture

ABS-ESD7

ABS-ESD7 thermoplastic Stratasys 3D printing material has static dissipative properties for applications where a static charge can damage products, impair their performance or cause an explosion.

ABS-M30 fan

ABS-M30

ABS-M30 is ideal for conceptual modeling, functional prototyping, manufacturing tools and production parts. ABS-M30 has greater strength than standard ABS.

Stratasys Thermoplatics ASA exterior outlet 3D printed part

ASA

Outdoor-use production parts benefit from the strength, colour choice and UV resistance of ASA material

Diran 410MF07 3D Printing Material

Diran 410MF07

Diran 410MF07 is a nylon-based thermoplastic FDM material. Typical applications include jigs, fixtures and other forms of general manufacturing tooling.

FDM Nylon-CF10 Material

FDM Nylon-CF10

Stratasys FDM Nylon-CF10 is a composite material combining a blended nylon polymer with chopped carbon fiber enhancing strength and rigidity

FDM TPU 92a flexible tube Elastomer Material

FDM TPU 92A

FDM TPU 92A brings the benefits of elastomers to Stratasys FDM 3D printing and offers the capability to quickly produce large and complex elastomer parts.

PC-ABS hand vac

PC-ABS

PC-ABS is a high-impact engineering thermoplastic with heat resistance ideal for functional prototyping, tooling and low-volume manufacturing

Stratasys F123 Series Benefits

Designed for the way you work, it’s a smart business move:

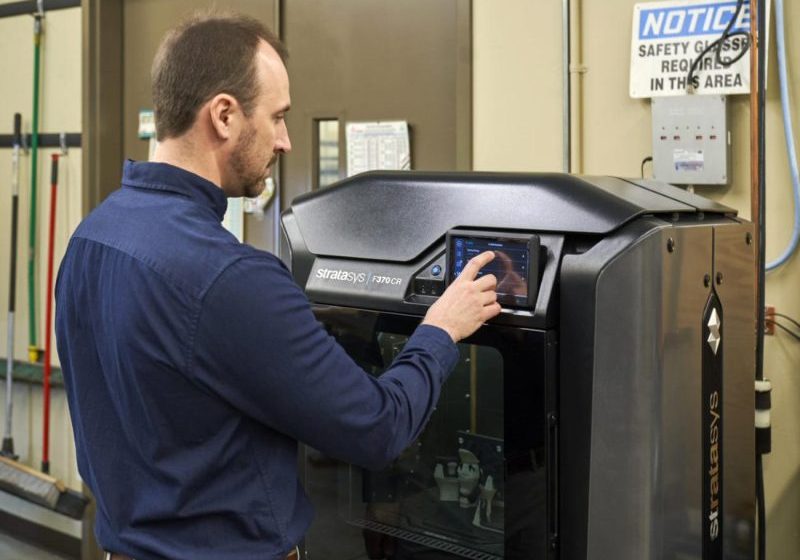

Stratasys F123CR Operation

Simple Setup & Operation

  • GrabCAD Print software makes setting up print jobs simple, just import the part’s CAD file and the software generates toolpaths and supports
  • Multiple resolutions will print from the same print head, avoiding tooling changes
  • Press print and walk away. No oversight needed until print job is complete.
  • The F370CR features auto-changeover, meaning you won’t have to interrupt a build to refill materials

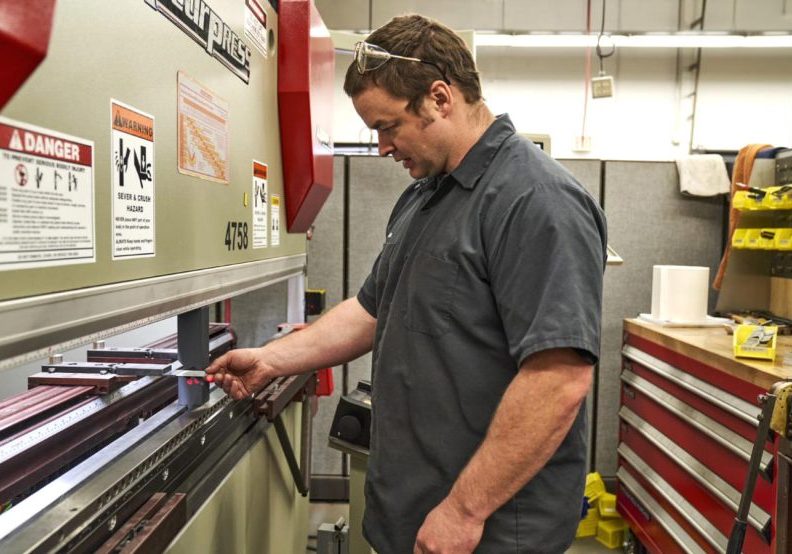

Stratasys F123CR Metal Press

Augment Machining

  • Supplement traditional fabrication technologies with composite 3D printing
  • Replace traditionally metal components with high-strength 3D printed composite parts
  • Avoid opportunity cost of using limited production resources or the lead time of outsourcing
  • Produce fixtures, soft jaws, component parts and more using composite 3D printing for a fraction of the time and cost compared to metal machining
  • Strong functional prototypes and end use parts

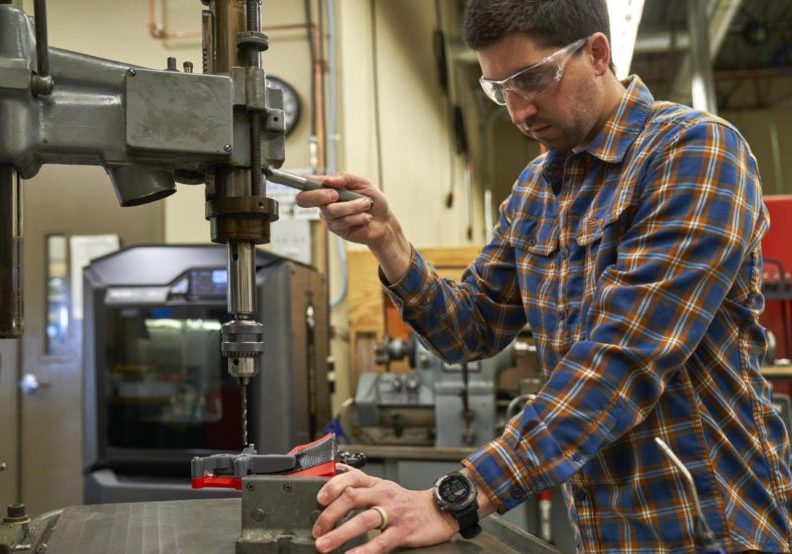

Stratasys F123CR Application

Unmatched Uptime

  • Stratasys F123CR printers are built on the same platform as the proven F123 Series, with a verified 99%- uptime and a 99%-dimensional repeatability performance*
  • Combining hardened components and print heads, sealed, desiccated filament bays, and a fully heated build chamber to offer unmatched reliability
  • New heads designed for printing composite materials with extended life

*Stratasys 2020 Repeatability and Reliability study for F370, Fortus 450mc and F900 printers.

Composite Part Case Study

Learn how customers are using Stratasys 3D Printers:

Stratasys customer East/West Industries needed to manufacture sheet metal parts but their existing tooling had been damaged.

They were able to print a full size forming tool out of Nylon Carbon Fiber material using their Stratasys production machine. This allowed them to save a significant amount of time and money by quickly 3D printing their tool rather than machining a new metal tool.

Stratasys F123CR Example Parts

Take a look at example models created with the FDM machines:

Stratasys F123CR Press Brake Tool
Stratasys F123CR Drill Jig
Stratasys F123CR Soft Jaw Application
Stratasys F123CR Machining Fixture
