Stratasys F770

Accessible Large-Format FDM 3D Printing

Take a look at the Stratasys F770

Print big for a not-so-big price

Industrial scale printing. Simplified.

Print big without the high capital investment of exclusive, large-format printers. The Stratasys F770™ 3D printer makes printing large, complex parts affordable, reliable and easy.

The F770 embodies the same industrial-grade components and design philosophy that make FDM Technology a class leader for reliability and consistent performance. It is proven technology that simply works.

F770 Large Scale 3D Printer

Print large or print many

The F770 is designed with size in mind. Print one or several large parts or take advantage of the printer’s generous capacity to make multiple parts for maximum productivity.

With the longest fully heated build chamber on the market, you can print a part that is 46 inches long on the diagonal. The spacious 13 cubic-foot build envelope opens up new opportunities for manufacturing, prototyping and production-part part applications that aren’t available with smaller printers.

There’s no need to sacrifice on part complexity either. The F770 uses soluble support material, which lets you design and print your parts free from design-for-manufacturability constraints or the limitations of printers with inferior support capability. The hands-free support removal process also minimizes post-processing, increasing your productivity.

1000 x 610 x 610 mm / 372,000 cm3 (39.4 x 24 x 24 in. / 22,677 in3)

Build Envelope

1,171 cm (46.1 in.)

Maximum length on the diagonal

Stratasys F770 Key Features

A printer anyone can operate

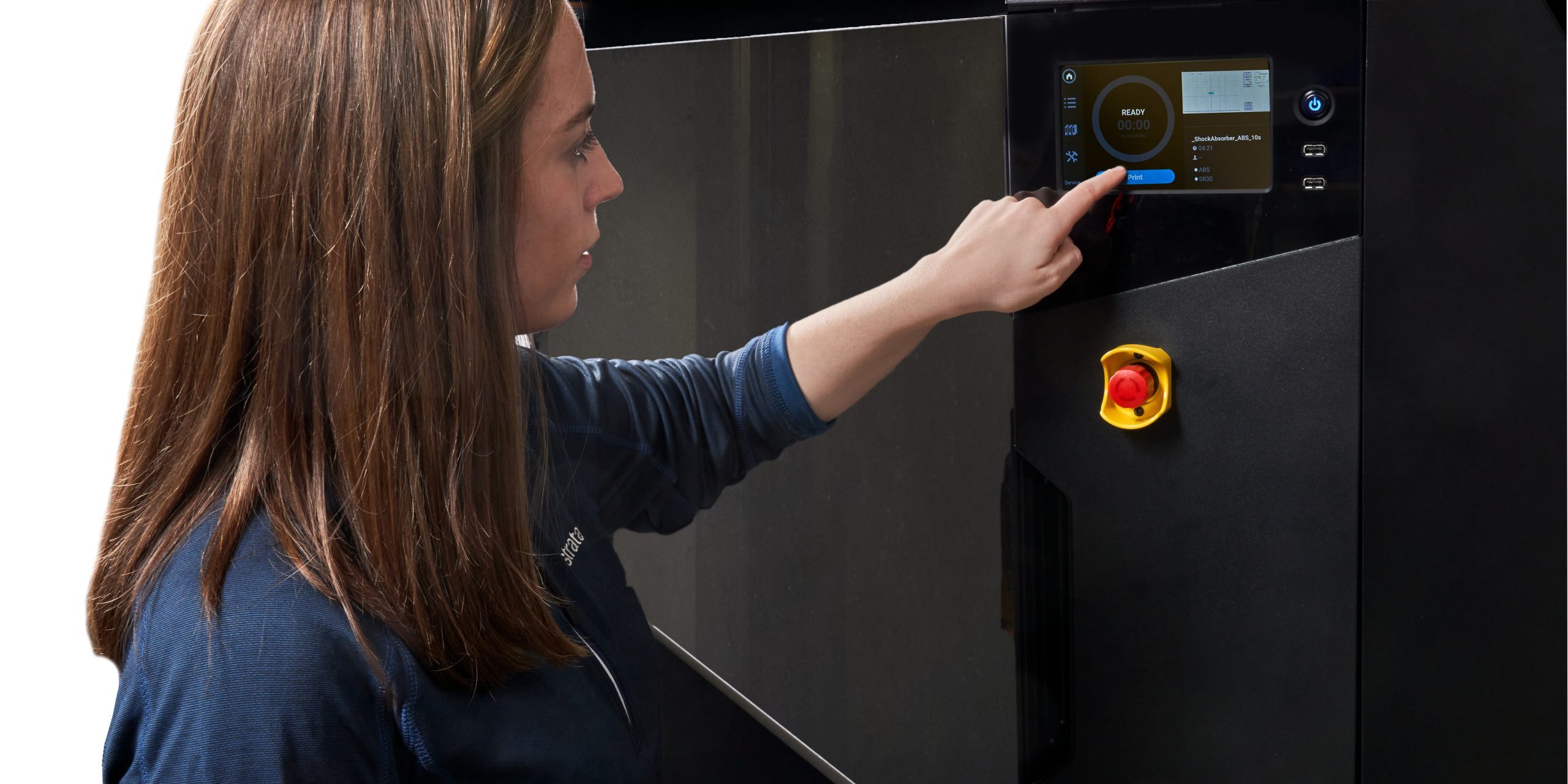

Stratasys F770 3D printer

Easy Operation

3D printing with the F770 is straightforward and requires no specialized training. It’s designed with plug-and-print simplicity so virtually anyone can print large, complex parts quickly and easily.

Simple CAD-to-print Workflow

The user-friendly GrabCAD Print™ software makes the CAD-to-print workflow simple, so all you have to do is import your CAD model and press the print button. It also features advanced capabilities and build options that help ensure successful results when printing large parts and tools. For those who want more in-depth print adjustment capability, Insight™ software is also included, to provide the greatest control over print results.

Lights-out, 24/7 Operation

3D printing with the F770 is also a lights-out, 24/7 operation. There’s no need to constantly monitor the printer while it’s operating. Quick-change material canisters are equipped with 200 cubic inches of filament, enabling up to 140 hours of unattended printing.

Thermal Management

Get accurate print results along with the repeatability and reliability that FDM Technology™ is known for. Stratasys FDM build chamber design is time-tested, ensuring precise thermal management across the build platen. This gives you consistent, successful print results, whether parts are big or small.

Reliable FDM Materials

The F770 gives you access to widely used engineering-grade thermoplastic materials and Stratasys FDM reliability. It comes equipped with MTConnect, ready to plug into your smart factory floor.

Material Density Options

You can easily control the material density options. Print with full density when you need the strength or use a sparser fill to save material and print time, a valuable option for very large parts. Variable slice height capability also lets you optimize your part’s appearance while minimizing print time.

Stratasys F770 Specifications

Unparalleled 3D printing scale

FeatureSpecification
System size and weight175 x 124 x 196 cm (69 x 49 x 77 in.)
658 kg (1450 lbs.)
Build Envelope1000 x 610 x 610 mm / 372,000 cm3 (39.4 x 24 x 24 in. / 22,677 in3)
Maximum length on the diagonal – 1,171 cm (46.1 in.)
MaterialsASA – Ivory
ABS-M30™ – Black
SR-30™ soluble support material
Material delivery200 in3 coil box (3277 cm3)
Achievable AccuracyXY part accuracy = +/- 0.254 mm (+/- 0.010 in.) or +/- 0.002 mm/mm (+/- 0.002 in./in.),
whichever is greater
Z part accuracy = +/- 0.200 mm (+/- 0.008 in.) or +/- 0.002 mm/mm (+/- 0.002 in./in.),
plus 1 layer height
SoftwareGrabCAD Print, Insight, Control Center™, MTConnect enabled
Workstation compatabilityWired and wireless (with USB dongle) network interfaces using standard TCP/IP protocols at 100 MBPS minimum
Wireless Network ConnectivityIEEE 802.11n-2009
IEEE 802.11g-2003
IEEE 802.11b-1999
Operating ConditionsOperating temperature 15 °C to 30 °C (59 °F to 86 °F)
Operating Humidity 30-70% - 39 in. clearance on each side of printer
Audible Noise/Acoustics54 dBA
Power Requirements3 phase, 208V, 30A, 5 wire, 47-63 Hz frequency
Regulatory ComplianceCE, cTUVus, RCM, EAC, FCC Part B
Facility RequirementsDouble-door width for installation, vacuum pump within system – no shop air required, forklift uncrating and installation
Installation RequirementsCrate = 186.7 cm W x 146 cm D x 225.4 cm H (73.5 in. W x 57.5 in. D x 88.75 in. H) Crated weight = 907 kg (2000 lbs)

Materials available for the Stratasys F770

Learn more about Stratasys F770 materials

ABS-M30 fan

ABS-M30

ABS-M30 is ideal for conceptual modeling, functional prototyping, manufacturing tools and production parts. ABS-M30 has greater strength than standard ABS.

Stratasys Thermoplatics ASA exterior outlet 3D printed part

ASA

Outdoor-use production parts benefit from the strength, colour choice and UV resistance of ASA material

Stratasys F770 Benefits

Lets you build, accurate, repeatable parts faster than ever before

GrabCAD Print Preparation

Smarter Software

Streamline your workflow with GrabCAD Print™ software. GrabCAD Print lets you print directly from your favorite professional CAD formats, avoiding time usually spent converting and fixing STL files. Use smart default settings, tooltips and notifications to guide you through a seamless printing process. Work with detailed views of your model, tray, and slice preview so you can make necessary adjustments before going to print.

F770 3D Printing

System reliability

The Stratasys F770 development testing included over 33,000 hours of test printing, including 14,300 hours of life testing in the XYZ print planes equating to over seven million meters (over 300 million inches) of travel, validating system durability and reliability.

Over 1700 hours of controller software verification testing was also accomplished.

large scale 3d printing

Unparalleled Consistency

Large, accurate all-in-one parts. No more joining and assembly for large parts. Consistent builds means that your parts print the same, every time. The printed parts are strong, featuring fully dense material with easy options to control infill and contours.

The CAD-to-print fidelity means that what you design in CAD comes out as a printed part from broad surfaces to exacting details.

Stratasys F770 Example Parts

Take a look at example models created with the production machine
