ZEISS ScanPort

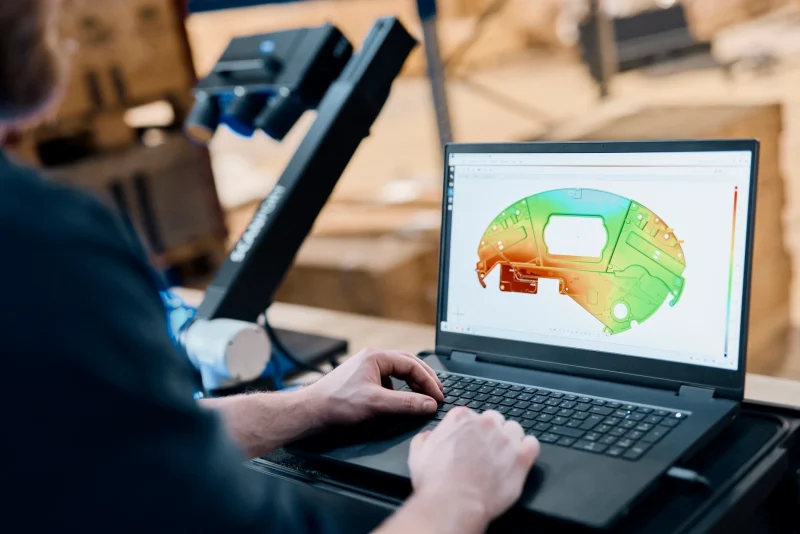

ZEISS ScanPort is a complete solution for 3-axis automation with just one click. It is a mobile and flexible semi-automated system that delivers metrologically flawless data. Operated with ZEISS INSPECT, ZEISS ScanPort is your all-in-one solution to capture all details of small to medium-sized parts.
Automated 3D Metrology for Small Parts
The ZEISS ScanPort is a semi-automated 3D scanning system that streamlines quality control and reverse engineering for small to medium components. This mobile, all-in-one solution uses 3-axis automation and ZEISS INSPECT software to deliver precise, reproducible 3D data with a single click, boosting efficiency in manufacturing.
ZEISS ScanPort 3D Scanner Benefits
The system combines a vertically movable axis, a tiltable mechanism, and a rotation table, enabling true 3-axis automation.
Metrology-grade Quality
ZEISS ScanPort offers high accuracy and fast, precise 3D data. Fringe Projection Technology and Blue Light Technology guarantee the highest quality.
3-axis automated 3D scanning

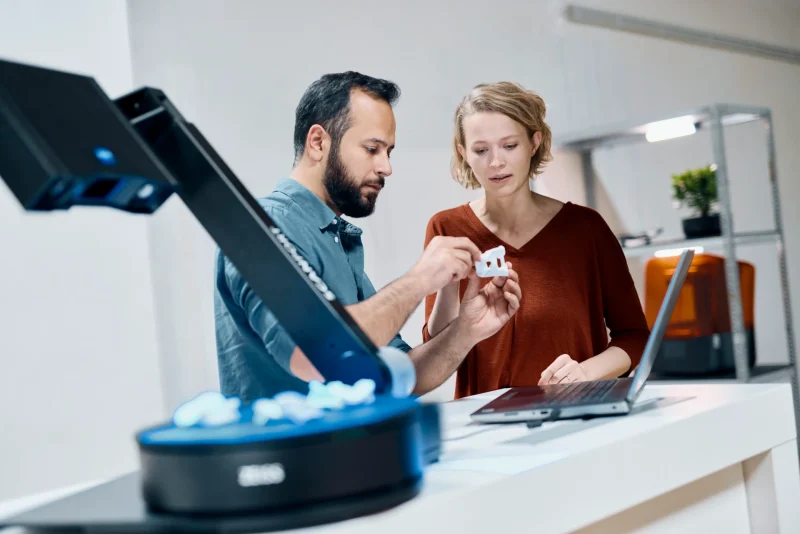

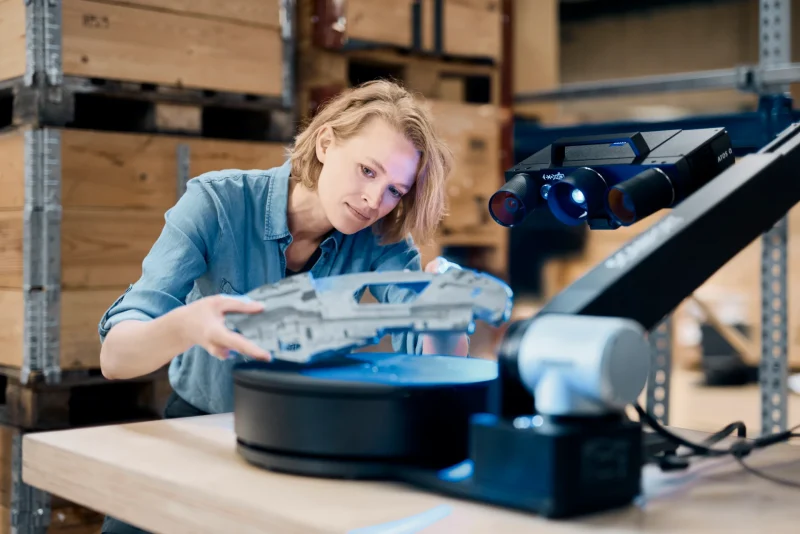

ZEISS ScanPort is a semi-automated all-in-one solution. The automated arm, which moves up and down and tilts backwards or upwards, offers 3-axis automation in combination with the rotation table. The sensor therefore measures from different distances and angles, capturing every detail of the measured part.
Fast results, exceptional performance
The outstanding performance of the ZEISS ScanPort is largely owed to its Blue Light Equalizer and fast data processing. The Blue Light Equalizer enables high-speed fringe projection and is so powerful that short measuring times can be achieved even on optically uncooperative surfaces. Industrial ports with fiber optic cables and robust plug-in connections allow for high data throughput.
Entry into automated 3D metrology
Precision 3D Metrology Made Simple
With ZEISS ScanPort, ZEISS presents an innovative, powerful solution in optical 3D metrology that combines accuracy, flexibility, and ease of use in a compact system. This new semi-automated system is designed for users who require reliable metrology results – without the need for extensive training or complex setups.
- Quick entry into automated metrology
- Semi-automated system for small and medium-sized parts
- Integrated ZEISS INSPECT software
A wide range of applications
Use ZEISS ScanPort for:
- 3D printing
- Reverse engineering and manufacturing
- Virtual displays or 3D models
- Plastic and injection molding
- Casting
- Punching and bending
ZEISS ScanPort Features
High repeatability and accuracy
ZEISS ScanPort in combination with ZEISS INSPECT offers high repeatability and accuracy. With motion replay and scanning templates, repeatability is easier than ever. With just one click, you can reproduce your entire scan. ZEISS ScanPort is a reliable and powerful solution for all your measuring tasks.
Template-based scanning
The pre-defined scanning templates in ZEISS INSPECT don’t require any setup. Just position the part and start scanning. Customizable templates allow you to add additional instructions to the measuring setup.
Extended software for extended uses

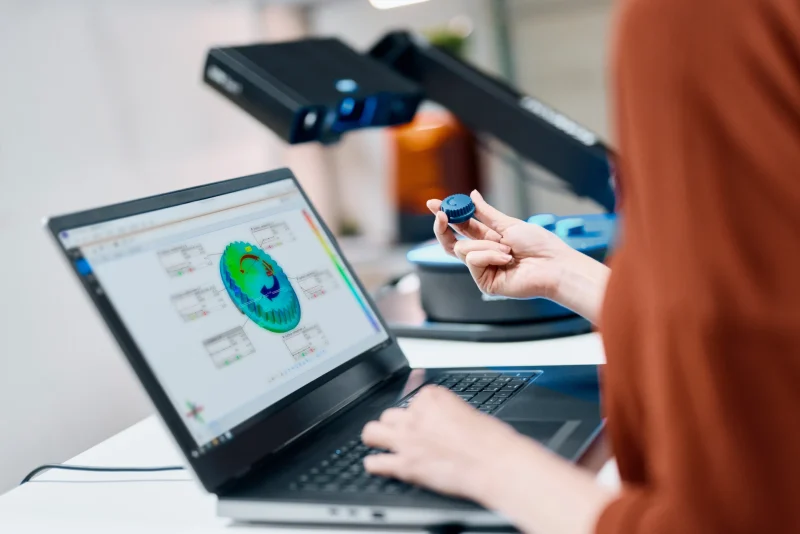

ZEISS INSPECT is our all-inclusive, easy-to-use 3D metrology software. With this powerful software, mesh editing, CAD comparison or 3D model creation is done with just a few clicks. Extended software capabilities such as the kiosk mode ensure that you can make the most of measuring with this system. In this mode, ZEISS ScanPort is operator-independent and anyone can measure and inspect the required parts.
Reproduce your scan in one go
ZEISS ScanPort is a powerful solution for the repeated inspection of complex, similar parts. With motion replay, you can repeat the same measurement with just one click, whereby the inspection for the second part is automatically updated. You can even see deviations between all measured parts, allowing you to quickly identify trends between the parts.
ZEISS ScanPort Specifications
The system combines a vertically movable axis, a tiltable mechanism, and a rotation table, enabling true 3-axis automation
| Feature | Specification |
|---|---|
| Light Source | Blue Light Technology |
| Points per Scan | Up to 12 million |
| Scanning Volume | Up to Ø500 x 300 mm³ |
| Point Distance | Up to 0.03 mm |
| Payload Capacity | 20 kg |
| System Weight | Approx. 22 kg |
| Interface | USB 2.0 |
| Power | AC 100–240V, 50/60 Hz |
| Operating System | Windows 11 |
| Software | ZEISS INSPECT |
| Compatibility | ATOS Q, GOM Scan 1 |
Intuitive operation with ZEISS INSPECT – no prior knowledge needed
A standout feature of the ZEISS ScanPort is its easy operation with ZEISS INSPECT. Features, such as kiosk mode, workflow assistants, and preconfigured scanning templates guide even inexperienced users smoothly through the measurement process. Operation is standardized – an accurate measurement can be started with just one click. This not only reduces training time but also minimizes potential errors.
Software

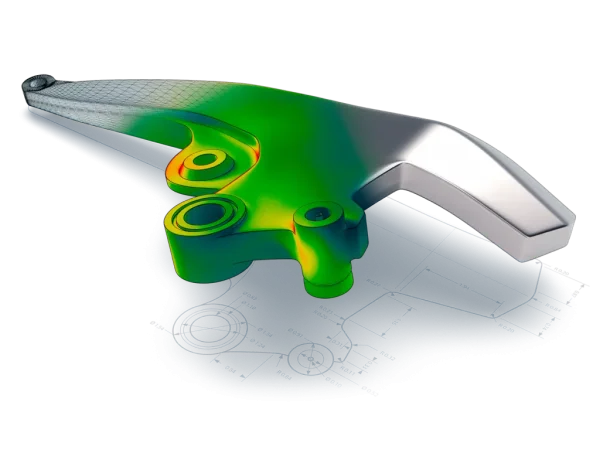

Revolutionary 3D scanning and data processing software
The scanner operates with ZEISS Inspect, the well-established standard in 3D metrology. Powerful mesh editing functions make it an ideal tool for 3D printing and reverse engineering.
What’s more, you can effortlessly handle simple and complex tasks throughout your inspection process. A software to simplify and speed up your workflow.
