Stratasys J850 FabriX

3D printing on fabric and flexible substrates

Take a look at the Stratasys J850 FabriX

3D print on fabric with the Fabrix Innovation Kit

Extends the capabilities of the J850 Prime 3D printer

FabriX™ Innovation Kit ™ is an easy-to-use, comprehensive, and repeatable solution for 3D printing on fabric and flexible substrates.

Experiment with new materials and printing techniques for a wider range of options. Explore the possibilities of 3D printing on fabric and create design prototypes that are both innovative and stylish.

Stratasys J850 FabriX Key Features

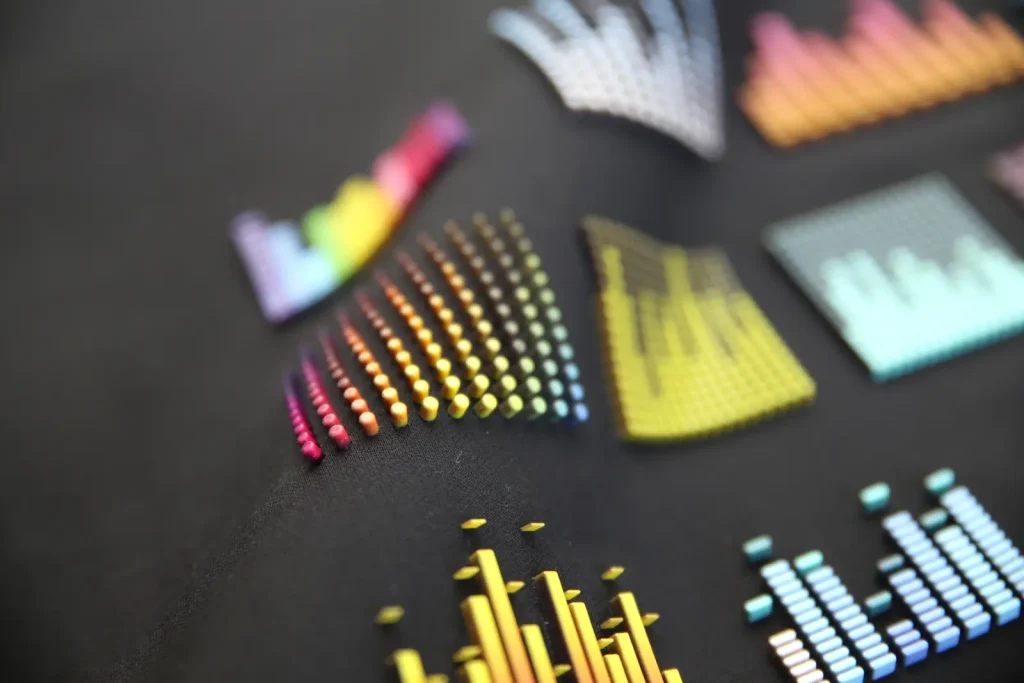

A whole new world full of colorful texture mapped designs

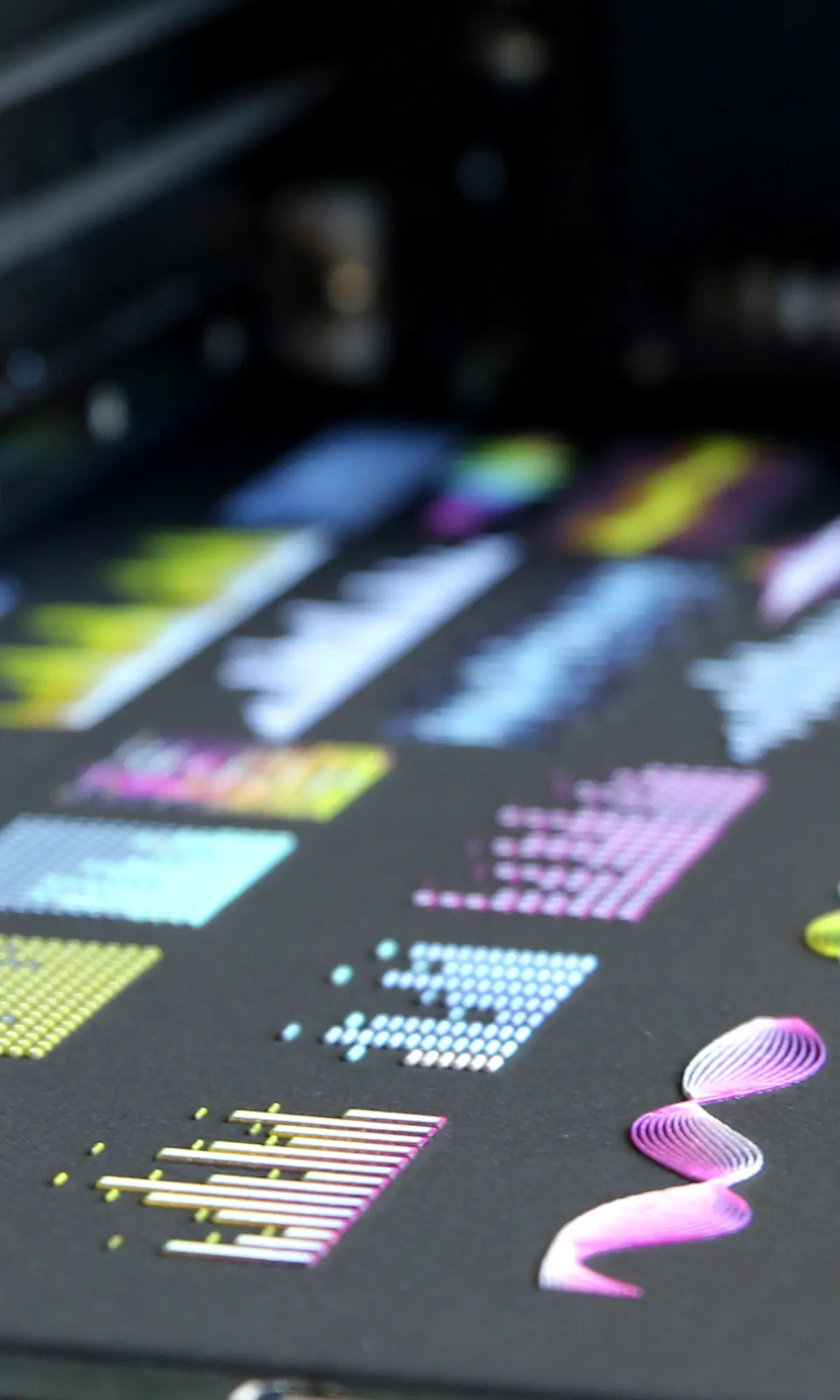

3D printed fabric

Fabric Design for a variety of Industries

FabriX is the ideal tool kit for designers at R&D and Innovation Centers in the Education, Consumer Goods, Wearable Electronics and the Concept Car and Automotive Industries.

Powered by Stratasys 3DFashion™ technology

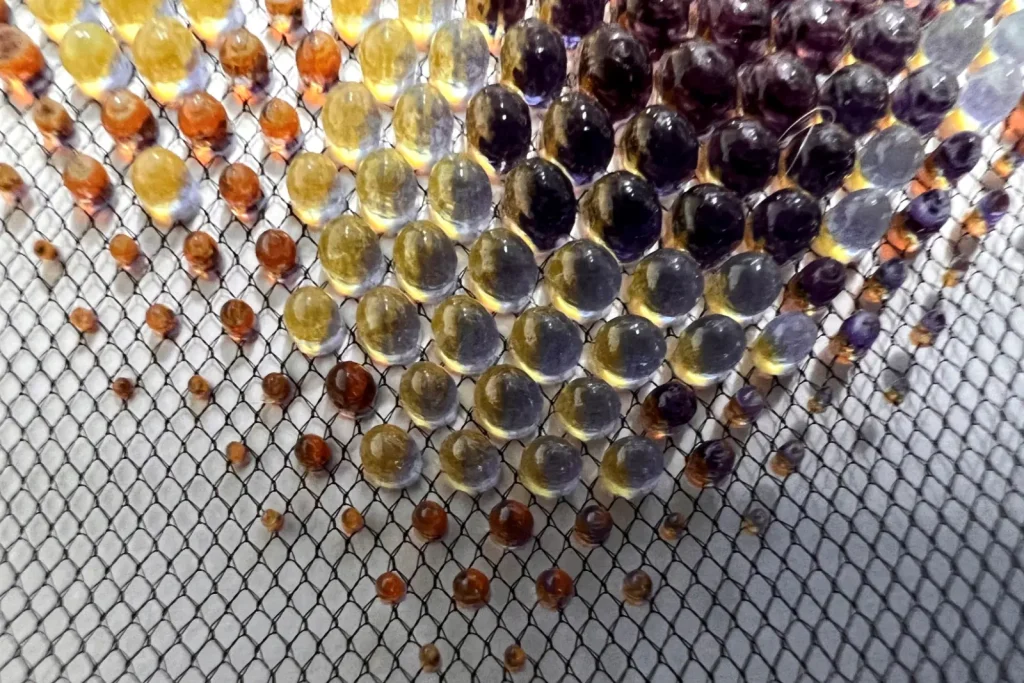

Together with FabriX, this technology enables optimization of the absorption rate mechanism for perfect adhesion of jetted materials on a variety of fabric types.

3D Print on Fabric in Full Color

Designers and researchers can easily 3D print on fabric, in full color, and clear print creating extraordinary designs on textile for educational research, military, wearable electronics, footwear and more.

Transform the J850 Prime into a hybrid system

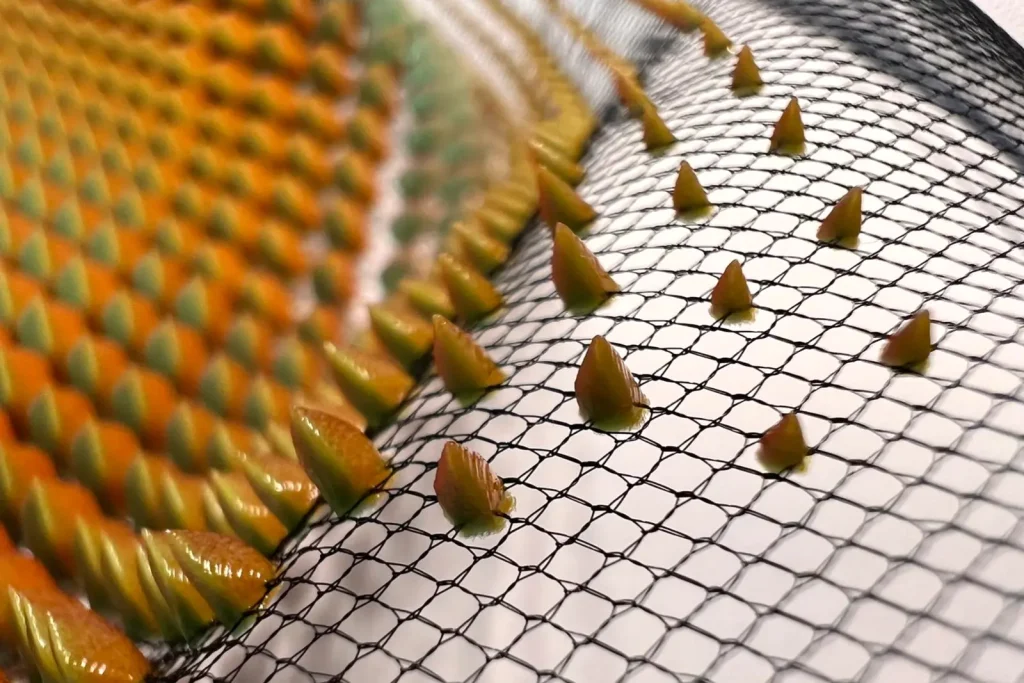

The Stratasys J850 Prime can print both 3D model parts and 3D print on flexible, flat substrates, such as fabric, carbon fiber, flexible polymers, mylar, netting, canvas and more.

Stratasys Logo

Stratasys J850 FabriX Specifications

Unparalleled 3D printing versatility

FeatureSpecification
Model MaterialsJ826 Prime and J850 Prime:

  • Vero™ family of opaque materials including neutral shades and vibrant VeroVivid™ colors
  • Agilus30™ flexible material
  • Transparent VeroClear™ and VeroUltraClear
  • digital material
  • VeroUltra™ White/Black
Digital Model MaterialsUnlimited number of digital materials including:

  • Over 600,000 colors and Pantone® Validated palettes
  • Translucent color tints
  • Flexible tactile materials in a variety of textures and colors
Support MaterialsSUP705 (WaterJet removable)
SUP706B (soluble)
Printed fabric adhesion
certification
ISO standards100%
Cotton
100%
Polyester
50/50%
Cotton
Polyester
Linen
Color Fastness to Laundering
@40c – ISO 105-C06:2010 (1-5)
5555
Color Fastness to Laundering
@60c – ISO 105-C06:2010 (1-5)
5555
Color Fastness to Light
ISO 105-B02:2013 (1-8)
7-87-87-87-8
Effective Printing Area
(After upgrade)
460 x 360 x 200 mm (18.1 x 14.2 x 7.8 in)**
Fabric SizeFabric Size Handling: min 560 x 460mm
Fabric Thickness: 0.2-2.5mm
Layer ThicknessHorizontal build layers down to 27-micron (0.001 in.)
Workstation CompatibilityWindows 10
Network ConnectivityLAN – TCP/IP
System Size and WeightJ850 Prime System:
1400 x 1260 x 1100 mm (55.1 x 49.6 x 43.4 in.); 430 kg (948 lbs.)
J850 Prime Material Cabinet:
1119 x 656 x 637 mm (44 x 25.8 x 25.1 in.); 153 kg (337 lbs.)
Operating ConditionsTemperature 18 – 25 °C (64 – 77 °F); relative humidity 30-70% (non-condensing)
Power Requirements100–120 VAC, 50–60 Hz, 13.5 A, 1 phase 220–240 VAC, 50–60 Hz, 7 A, 1 phase
Regulatory ComplianceCE, FCC, EAC
SoftwareGrabCAD Print
Build ModesHigh Quality: up to 7 base resins, 14-micron (0.00055 in.) resolution
High Mix: up to 7 base resins, 27-micron (0.001 in.) resolution
High Speed: up to 3 base resins, 27-micron (0.001 in.) resolution
Super High Speed: 1 base resins, 55 -micron (0.002 in.) resolution
AccuracyJ850 Prime System: Typical deviation from STL dimensions, for models printed with rigid materials, based
on size: under 100 mm – ±100μ; above 100 mm – ±200μ or ± 0.06% of part length, whichever is greater

Materials available for the Stratasys J850 FabriX

Learn more about Stratasys J850 FabriX materials

Agilus 30 jelly shoe

Agilus 30

Agilus 30 is a PolyJet Photopolymer 3D printing material with superior tear-resistance, capable of withstanding repeated flexing and bending.

Stratasys Rigid Opaque engine block in Vero Material

Rigid Opaque (Vero)

Rigid Opaque (Vero) multi-purpose, multi-colour photopolymers offer strength, stiffness and versatility in blue, white, black, gray, cyan, magenta & yellow.

VeroUltraClear Key

VeroUltraClear

Stratasys VeroClear is a rigid transparent material that simulates PMMA (polymethyl methacrylate), commonly known as acrylic, used as an alternative to glass .

Stratasys J850 FabriX Benefits

Lets you build, accurate, repeatable parts faster than ever before

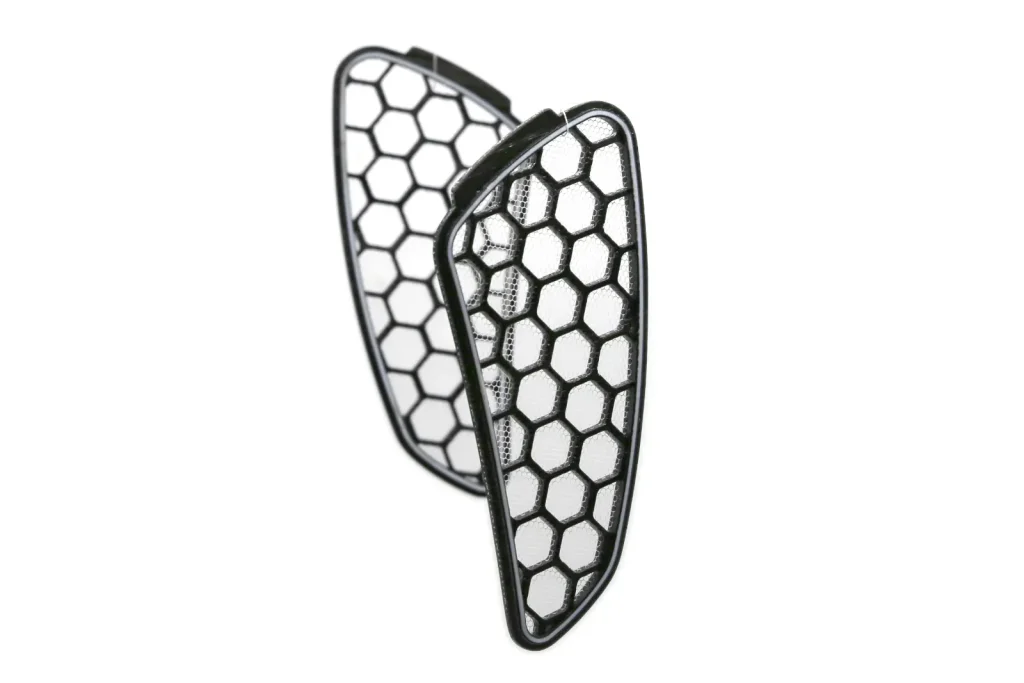

Fabrix consumer goods

Consumer Goods

3D printing has the potential to revolutionize the consumer goods industry with a wide range of products being produced more quickly and efficiently than ever before.

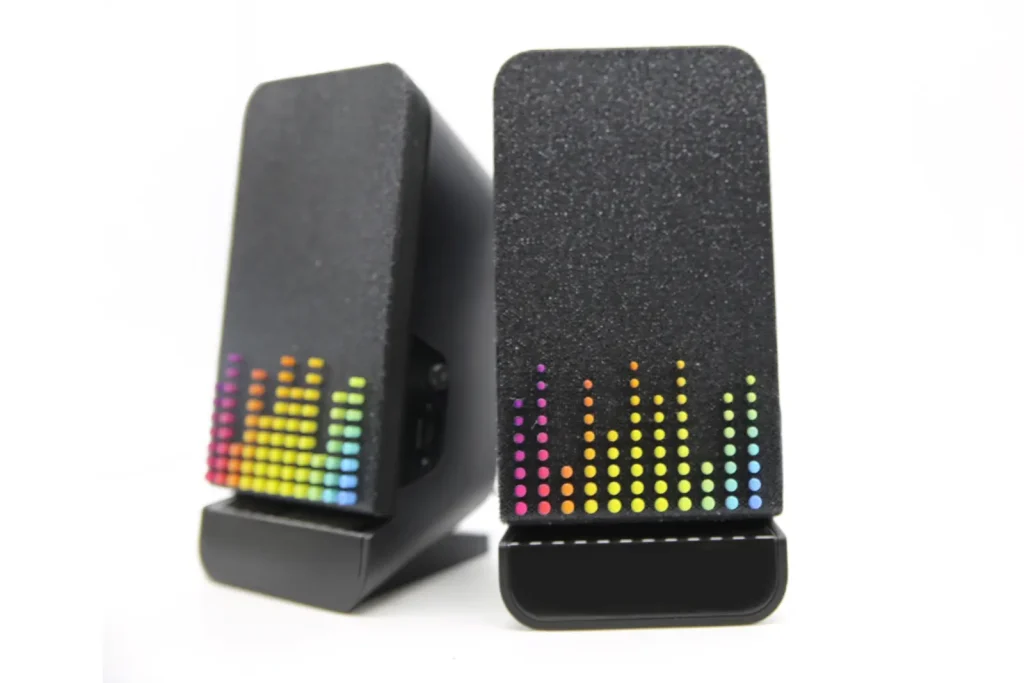

Fabrix electronics

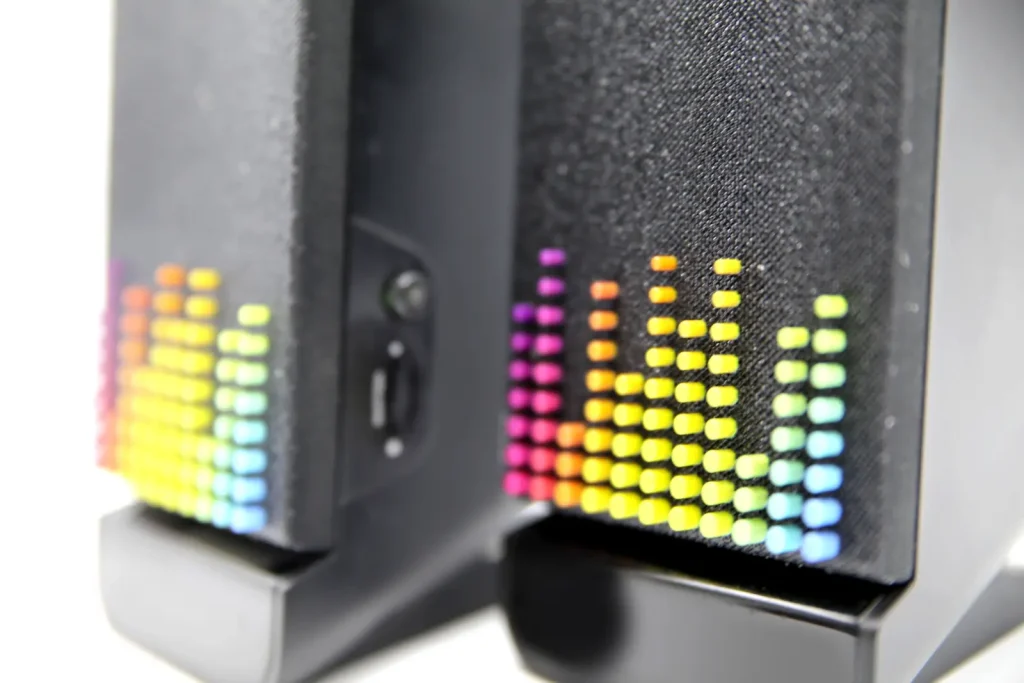

Embedded Electronics

This new technology is changing the way we manufacture electronics by allowing us to 3D print them directly onto fabrics and flexible substrates.

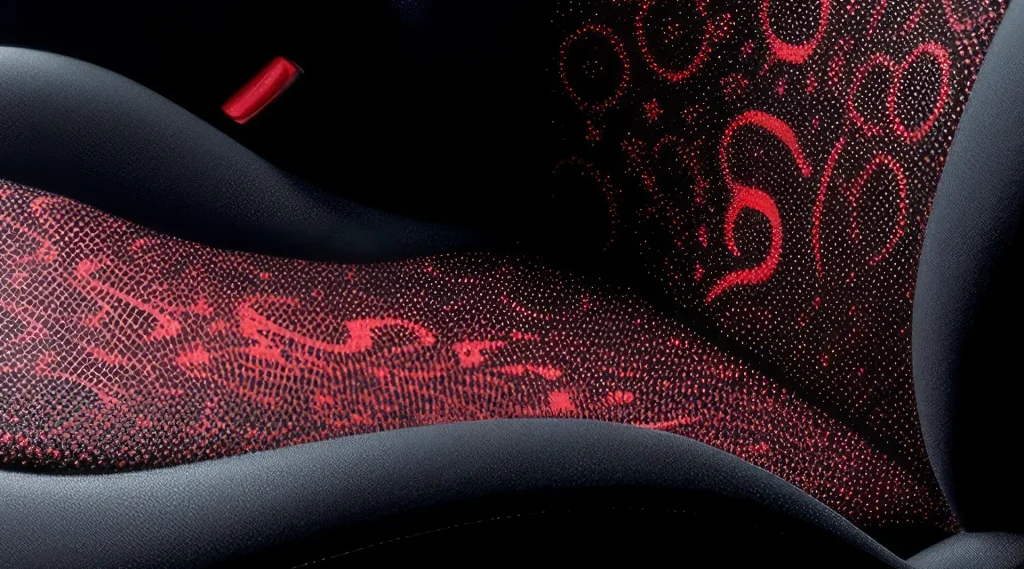

Fabrix concept car

Automotive Interior

3D printed fabric can be used to create a variety of textures and patterns on a car’s interior which is only one of the innovative uses for 3D printing in the automotive industry.

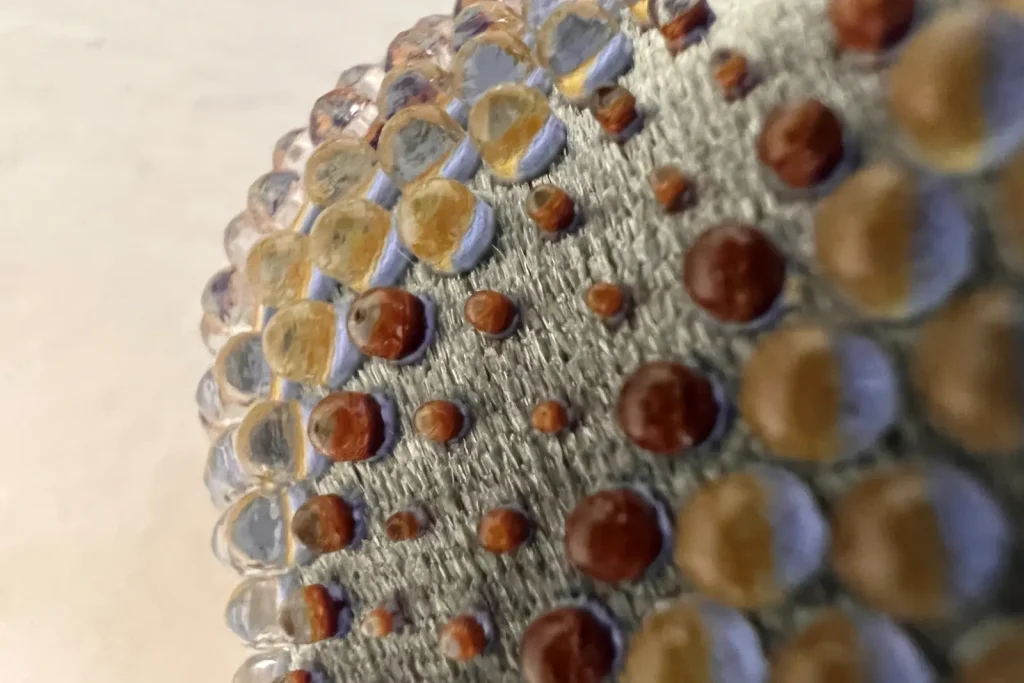

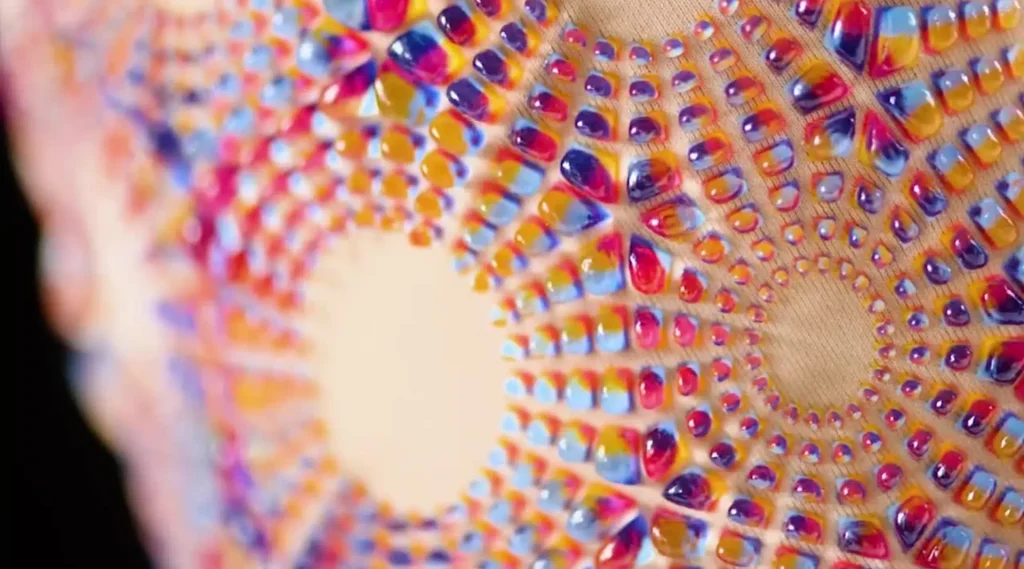

Fabrix fashion

Fashion and Design

The FabriX materials are the perfect choice for direct-to-textile 3D printing in the fashion industry. These materials offer striking, full vivid color and can be used on a variety of fabrics and flexible substrates. Not only do they provide excellent flexibility and durability, but they are also at the forefront of sustainability according to stringent industry standards.

Stratasys J850 FabriX Example Parts

Take a look at example models created with the colour machine
