Stratasys F900

The Ultimate Additive Manufacturing System

Take a look at the Stratasys F900

The most powerful Fused Deposition Modeling (FDM) System

Production 3D Printer

The Stratasys F900 has ALL that the Stratasys FDM Production family has to offer, on a bigger scale!

The ultimate manufacturing-grade production 3D printer, printing widest array of engineering-grade materials, maximum throughput, largest build platform, highest accuracy and precision built for reliability, repeatability, and durability for demanding manufacturing production.

Stratasys F900 Key Features

Fast, reliable, repeatable production 3D printing

Stratasys F900 cuts cost

Large Build Size

Stratasys F900 net build size: 914 x 610 x 914 mm (36 x 24 x 36 in.) Platen supports two build zones for either a small or large build sheet

Five material thicknesses

You can fine-tune your desired balance between Fused Deposition Modeling's finest possible feature detail and the fastest build.

15 Production-grade Materials

The Stratasys F900 provides a wide range of thermoplastics with advanced mechanical properties so your parts can endure high heat, caustic chemicals, sterilization, and high impact applications.

Stratasys Logo

Stratasys F900 Specifications

Fine details. Smooth surface finishes. Accuracy. Strength.

FeatureSpecification
Model MaterialABS-ESD7, ABSi, ABS-M30, ABS-M30i, Antero 800NAPC, PC-ABS, PC-ISO, PPSF, ULTEM 9085, ULTEM 1010, Nylon 12, Nylon 6, ST- 130, Nylon 12CF
Layer Thickness0.020 INCH (0.508 MM), 0.013 INCH (0.330 MM), 0.010 INCH (0.254 MM), 0.007 INCH (0.178 MM). 0.005 INCH (0.127 MM)
Net Build Size (XxYxZ)914 x 610 x 914 mm (36 x 24 x 36 in.)
Machine Dimensions2772 x 1683 x 2027 mm (109.1 x 66.3 x 79.8 in.)
Machine WeightWith crate: 3287 kg (7247 lbs.), without crate: 2869 kg (6325 lbs.)
MaterialLayer ThicknessSupport
Structure
Colours
 0.020 inch (0.508 mm)0.013 inch (0.330 mm)0.010 inch (0.254 mm)0.007 inch (0.178 mm)
ASASolubleBlack, Dark Blue, Dark Gray, Green, Light Gray, Yellow, White,
Orange, Ivory, Red
ABS-M30 SolubleIvory, White, Black, Red, Blue, Dark Gray
ABS-M30i SolubleIvory
Antero 800NA   BreakawayNatural
ABS-ESD7  SolubleBlack
PC-ABS SolubleBlack
PC-ISO BreakawayTranslucent Natural, White
PC Breakaway, SolubleWhite
ULTEM® 9085
resin
  BreakawayTan, Black
ULTEM 1010
resin
 BreakawayNatural
PPSF   BreakawayTan
FDM Nylon 12CF  SolubleBlack
FDM Nylon 12 SolubleBlack
FDM Nylon 6  SolubleBlack
ST-130   BreakawayNatural

Materials available for the Stratasys F900

Learn more about Stratasys F900 materials

ABS-ESD7 hard drive fixture

ABS-ESD7

ABS-ESD7 thermoplastic Stratasys 3D printing material has static dissipative properties for applications where a static charge can damage products, impair their performance or cause an explosion.

ABS-M30 fan

ABS-M30

ABS-M30 is ideal for conceptual modeling, functional prototyping, manufacturing tools and production parts. ABS-M30 has greater strength than standard ABS.

ABS M30i 3D printed foot

ABS-M30i

ABS-M30i is a Stratasys biocompatible 3D printing material perfectly suited for medical, pharmaceutical and food-packaging applications.

Antero 800NA Material

Antero 800NA

Antero 800NA PEKK-based thermoplastic combines FDM’s design freedom with the excellent mechanical properties and low outgassing characteristics of PEKK.

Stratasys Thermoplatics ASA exterior outlet 3D printed part

ASA

Outdoor-use production parts benefit from the strength, colour choice and UV resistance of ASA material

FDM Nylon 12 battery box

FDM Nylon 12

FDM Nylon 12 combines strength with excellent fatigue properties suitable for repetitive closures, snap fits and vibration-resistant parts.

FDM Nylon 12CF fixture

FDM Nylon 12CF

FDM Nylon 12CF combines strength with excellent fatigue properties suitable for repetitive closures, snap fits and vibration-resistant parts.

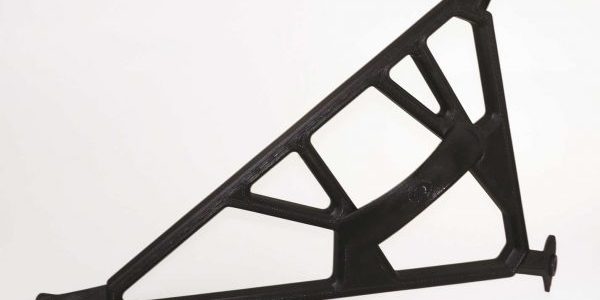

Nylon 6 Jig 3D Printed Part

FDM Nylon 6

FDM Nylon 6 possesses excellent strength and stiffness while maintaining good impact resistance among the three Nylon 3D printing materials from Stratasys

PC Blow Mold

PC (polycarbonate)

PC (polycarbonate) material is widely used in automotive, aerospace, medical and many other applications. PC offers accuracy, durability and stability.

PC-ABS hand vac

PC-ABS

PC-ABS is a high-impact engineering thermoplastic with heat resistance ideal for functional prototyping, tooling and low-volume manufacturing

PC-ISO 3D printed part

PC-ISO

PC-ISO is a bio-compatible FDM thermoplastic that lets engineers create prototypes, molds and products in a heat-resistant material for the pharmaceutical, food packaging and medical industries.

PPSF PPSU 3D Printed Chemical Resistant Parts

PPSF / PPSU

PPSF / PPSU (polyphenylsulfone) Stratasys 3D printing material has the greatest heat and chemical resistance of all FDM materials

ST-130 sacrificial FDM tooling

ST-130 Sacrificial Tooling

ST-130 Sacrificial Tooling material simplifies the production of hollow composite parts. Complex tools can be 3D printed and easily dissolved after curing.

ULTEM 1010 medical part

ULTEM 1010

ULTEM 1010 resin is one of the strongest Stratasys FDM thermoplastics, possessing high heat resistance and thermal stability for 3D printed parts.

3D printing material 3ULTEM 9085 airplane wing

ULTEM 9085

ULTEM 9085 resin material lets manufacturers create functional prototypes and production parts for high-strength, FST-rated and certified applications.

Stratasys F900 Benefits

Lets you build, accurate, repeatable parts faster than ever before

GrabCAD Print Preparation

Smarter Software

GrabCAD Print™ software simplifies the entire 3D printing process with an intuitive CAD-like application anyone on your team can use. And with features like detailed reporting and remote monitoring, you can easily manage your print jobs from outside the office.

Combined with the ability to seamlessly share projects between users, it all adds up to a more streamlined, efficient workflow.

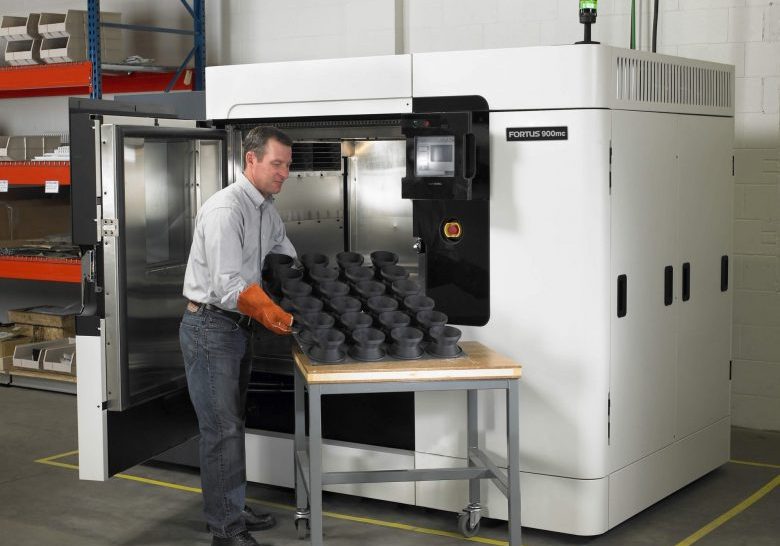

3D Part Production and Manufacture with a professional 3D printer

Advanced FDM technology

Fortus systems are based on Stratasys® FDM technology. FDM builds parts in production-grade thermoplastics, enabling the most durable parts.

Fortus systems use a wide range of thermoplastics with advanced mechanical properties so your parts can endure high heat, caustic chemicals, sterilization and high impact applications.

uPrint in-house

Easy to operate & safe to use

Compared to other additive manufacturing systems, Stratasys F900 3D Production Systems
are easy to operate and maintain as there are no messy powders to handle and contain. They’re so simple, an operator can be trained to operate a Fortus system in less than 30 minutes.

You can install a Stratasys F900 Production System just about anywhere. No special venting is required because Stratasys systems produce no noxious fumes, chemicals or waste.

Stratasys F900 Success

Learn how manufacturers are using the production 3D Printer

Stratasys’ new Certified 3D Printing Solution for Aircraft Interiors

Hong Kong-based Western Tool & Mold serves the aerospace interiors market where airlines demand quick turnaround of replacement parts to improve supply chain efficiency, but are often challenged due to the unique geometries of individual components.

Stratasys supports Western Tool & Mold with it's recently launched Stratasys F900 Aircraft Interiors Certification Solution to produce aircraft cabin components that meet stringent FAA and EASA certification requirements.

Stratasys F900 Example Parts

Take a look at example models created with the FDM machines:

3D Printer Services

3D Printing Productivity and maintenance with Javelin services

Javelin Support Team

Technical Support

With our 3D Printer Subscription Service, you have access to extensive help from our 3D Printing experts. Which will enhance your hardware investment and guide you through development challenges.

Benefits
  • Live Technical Support from our certified support team.
  • Onsite Support to solve your technical issue right on your machine.
  • Regular Communication of 3D printer software updates and technical tips and tricks.

Learn about our 3D Printer Subscription Service »

Stratasys Support

Maintenance & Materials

When you purchase a new 3D printer from Javelin, our service contracts give you predictable maintenance costs and simplified purchasing cycles for spare parts, service and consumables/material.

Advantages
  • Annual onsite service of your machine
  • Get replacement 3D printer materials and parts directly from us
Exclusive pricing for Education

Contact us to learn more about educational pricing and maintenance contracts for educational institutions.

3D Printing Hands-on Training

3D Printer Training

Our exclusive 3D Printing training and mentoring will show you how to optimize and 3D Print your 3D models more cost effectively to become an Additive Manufacturing expert:

Features
  • Learn how to print Your 3D designs with confidence
  • Understand 3D printing technology and material usage
  • Reduce your 3D printing time and costs

Learn more about training from Javelin »

Is the Stratasys F900 right for you?

Call us free at  1-877-219-6757  and get your questions answered

Try before you buy

Print one of your own 3D Models on the Stratasys F900 through our 3D Printing Service
