BOLDSERIES One Click Metal 3D Printer
The BOLDSERIES, developed by One Click Metal, represents a holistic and user-friendly metal 3D printing system. At One Click Metal, the overarching goal is to simplify the complexity of metal additive manufacturing technology, making it accessible and understandable for everyone.
With this goal in mind, the BOLDSERIES focuses on affordability and ease of use, while ensuring high-quality parts. Key features such as the cartridge system and the intuitive step-by-step HMI support this philosophy by enhancing user experience and simplifying operations.
Metal 3D Printing Overview Demo
One Click Metal have put together a complete package includes everything you need for a technology start – with transparent costs and an unbeatable price-performance ratio:
Metal 3D Printing Process
The BOLDSERIES is comprised of several components:
- The MPRINT, a metal 3D printer that forms the core of the system.
- The MPUREpro, a 2-in-1 unpacking and sieving station that streamlines post-processing steps.

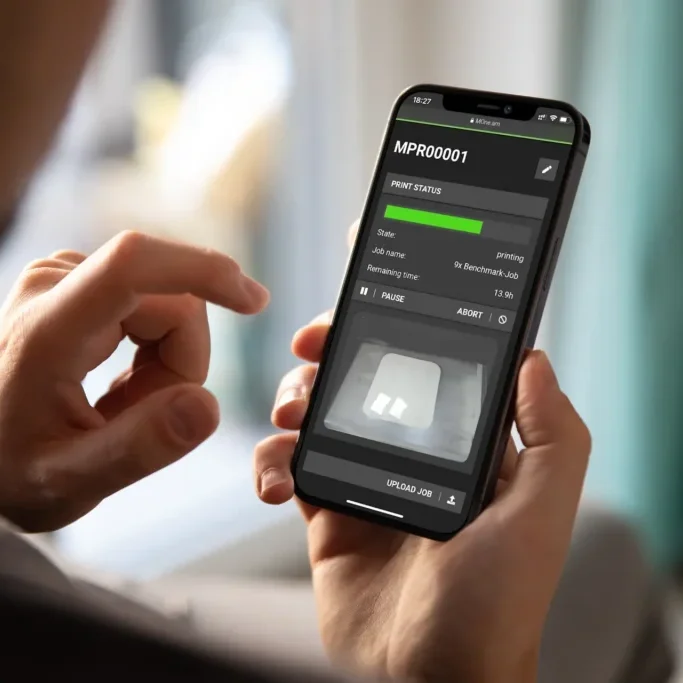

- The MONE, a digital platform (on a computer or mobile device) for location-independent monitoring and control of the MPRINT.
The problem of unsafe and unclean powder management is solved with the BOLDSERIES by the cartridge system.
- Separation of supply and overflow cartridges avoid risk of mix-ups.
- Direct powder contact for the user is significantly reduced.
- Most of the processed powder can be reused
- Printing Process: As the printing job progresses, any excess powder is carefully collected in the designated overflow cartridge. Once the printing is complete, the build module has to be transported to the unpacking chamber of the MPUREpro for further processing.
- Unpacking Process: During the depowdering process of the component, the processed powder is effectively collected in a separate overflow cartridge.
- Sieving Process: The overflow cartridges are inserted into sieving station, where the powder is sieved. The sieved powder is then carefully collected in fresh supply cartridges.
Metal 3D Printing Components
The BOLDSERIES includes the following key components to print metal parts:
MPRINT Metal 3D Printer
The MPRINT is the printing unit of the BOLDSERIES. Powered by a 200W fiber laser, it offers high productivity and precision across a wide range of applications.

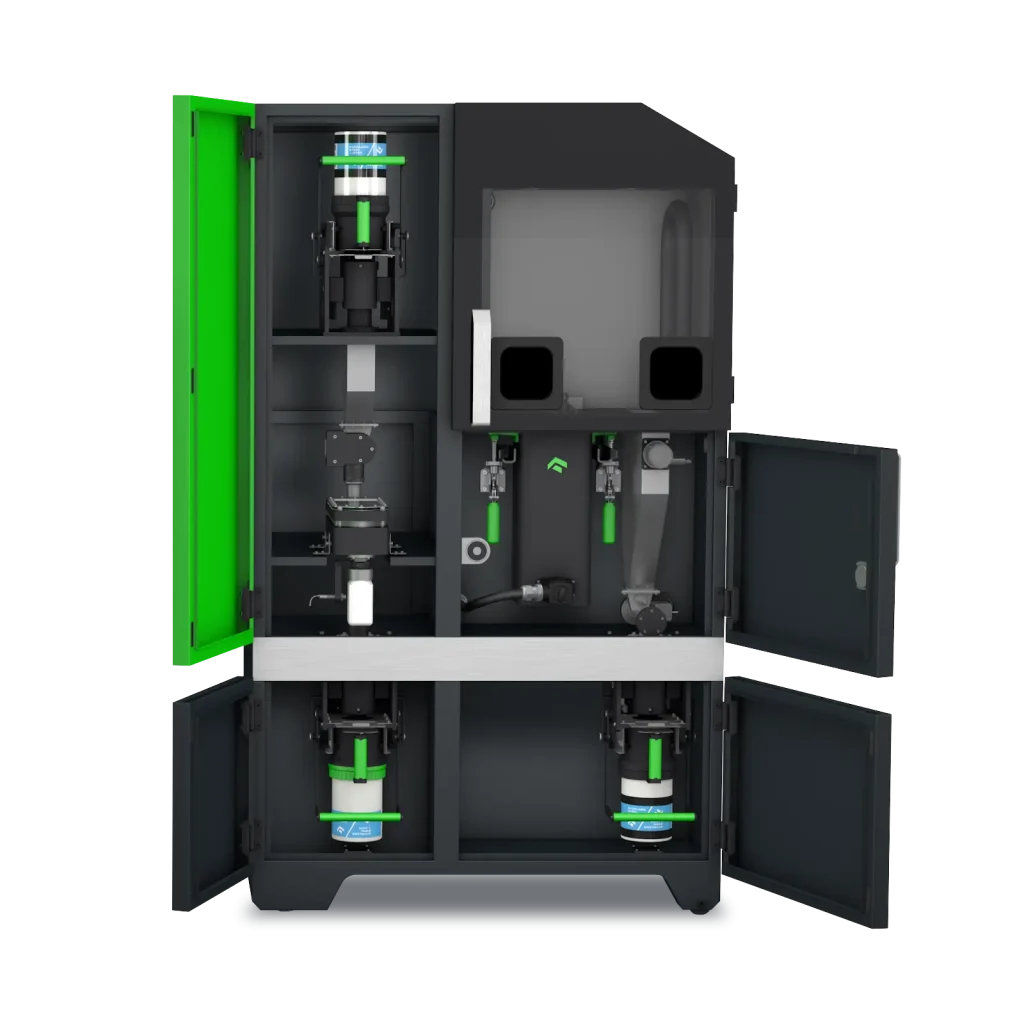

MPUREPro 2-in-1 Part Processing / Unpacking and Sieving Station
The MPUREpro serves as the unpacking and sieving unit within the BOLDSERIES. Once the printing process is complete, the component in the build module is transferred into the dedicated unpacking chamber of the MPUREpro, guaranteeing a secure depowdering process.
One Click Metal BOLDSERIES Features
Powder & Cartridge System
The BOLDSERIES features a sophisticated cartridge system that enables efficient powder management throughout the whole process chain.
The supply cartridges serve a dual role, providing fresh powder for the print job while also collecting sieved powder in the sieving station.
Meanwhile, the overflow cartridges efficiently collect the processed powder. The cartridge system significantly reduces direct powder contact, making the BOLDSERIES user-friendly and accessible to individuals, regardless of their prior experience.
Easy Machine Operation
The control software enables absolutely intuitive operation of the MPRINT. The handling is self-explanatory and allows a quick start in dealing with the machine.
Take advantage of the saved time for your workflow and start with just a few clicks.
- 6 guided functions for operating and maintaining the BOLDSERIES.
- Forecast for powder supply.
- Intuitive design.
- Process camera for process overview.
Wide variety of applications
The additive manufacturing process with metal powders offers a wide range of applications in a variety of different sectors and industries.
Metal 3D printing with the BOLDSERIES can be applied to:
- Product development.
- Prototyping.
- Industrial production of individual parts, small or large series.
- Research and development.
- Education and training.
Interested in the One Click Metal BOLDSERIES?
Contact a Javelin Manufacturing Expert today about the One Click Metal BOLDSERIES and get answers to your questions
One Click Metal BOLDSERIES Specifications
MPRINT 3D Printer
- Powder Supply
- 5 supply cartridges
- 250% oversupply of the build volume (at maximum capacity)
- Process chamber
- LPBF-process
- X-profile powder application
- 200W laser power (fiber)
- 70µm focus diameter
- up to 3000mm/s scanning speed
- Build module
- 150mm x 150mm x 150mm
- 20-80µm layer height
- Replaceable safe gas filter
- Connection and consumption
- Power supply: 230V/50-60Hz
- Fuse protection: 16A
- Inert gas: Nitrogen/Argon
- Dimensions and weight
- Dimensions WxHxD: 1,1 x 1,9 x 0,79m
- Weight: 440kg
MPUREpro Post Processing
- Unpacking chamber
- Glove box for bulk powder removal without direct powder contact
- Connector for external ATEX vacuum cleaner
- Sieving unit for powder recycling
- Ultrasonic sieve
- Sieved powder in supply cartridge for reusage
- Oversize powder separated for disposal
- Connection and consumption
- Power supply: 230V/50-60Hz (US: 110V)
- Fuse protection: 16A
- Dimensions & weight
- Dimensions BxHxT: 1,1 x 1,9 x 0,79m
- Weight: 310kg
Everything you need to get started
One Click Metal product solutions are based on four approaches, which we have identified as the solution to customers’ needs:
- The powder and cartridge system provides easy and safe powder management.
- The co-thinking-philosophy supports and guides the user from start to finish.
- The holistic product solution offers a perfectly harmonized system chain.
- A low financial entry barrier allows rapid access into AM-technology.
To make your entry into metal 3D printing as uncomplicated as possible, One Click Metal have put together a complete package. It includes everything you need for a technology start – with transparent costs and an unbeatable price-performance ratio. We offer clear prices for clear performance.
Our total package includes:
- BOLDSERIES: MONE, MPRINT, MPUREpro
- Starter package: cartridge interfaces, cartridge containers, substrate plates, coater lips, bayonet lock, PSA, parameters, lifter
- Powder package in three different sizes depending on powder requirements
Materials available for the One Click Metal BOLDSERIES
Stainless Steel
- 1.4404/316L
- Good corrosion resistance
- High tensile strength
- Good strength and rigidity
- 1.4542 / 17-4-PH
- High strength and toughness
- Good corrosion resistance
- Good processability
- Magnetic
Aluminum
- 3.2382
- High dynamic load capacity
- Easily post processing possible
Tool Steel
- 1.2709
- Thermally hardenable up to approx. 54 HRC
- Good thermal conductivity compared to other steels
Nickel Alloy
- 2.4856 / Ni-625
- High pitting, cracking and stress cracking resistance
- Excellent resistance under a variety of oxidizing and reducing conditions
- 2.4668 / Ni-718
- Very good corrosion resistance at both high and low temperatures
- Good oxidation resistance up to 1000 °C with very good weldability and resistance to cracking
Titanium
- Ti64 grade 23 / Ti6Al4V
- Excellent strength to weight ratio
- High fracture toughness
- High corrosion resistance
How to 3D Print Metal Parts

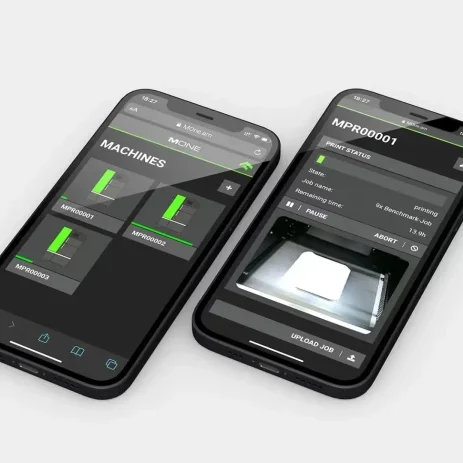

1. Job Upload
Using MONE you can quickly and conveniently load your component onto the MPRINT machine.
MONE also allows you to keep track of the printing progress and powder supply of all your machines.
2. Print
The machine operation of MPRINT is easy to print metal parts in just six steps:
- Select build job
- Prepare build module
- Check powder supply
- Check overflow powder
- Check machine
- Apply first layer

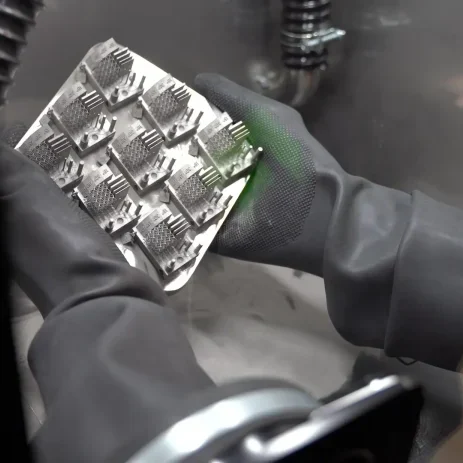

3. Unpack
Once the part is printed and the build module is inserted into the MPURE with the lifter.
You can unpack it without direct powder contact and sieve processed powder at the same time.

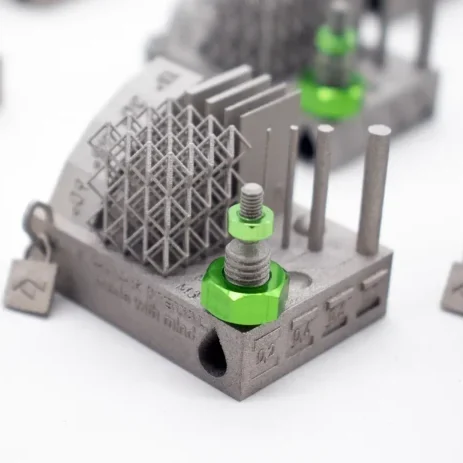

4. Post-Process
If your component has support structures, now is the time to remove them.
Optionally, further finishing steps are possible, such as sandblasting, polishing, or grinding.

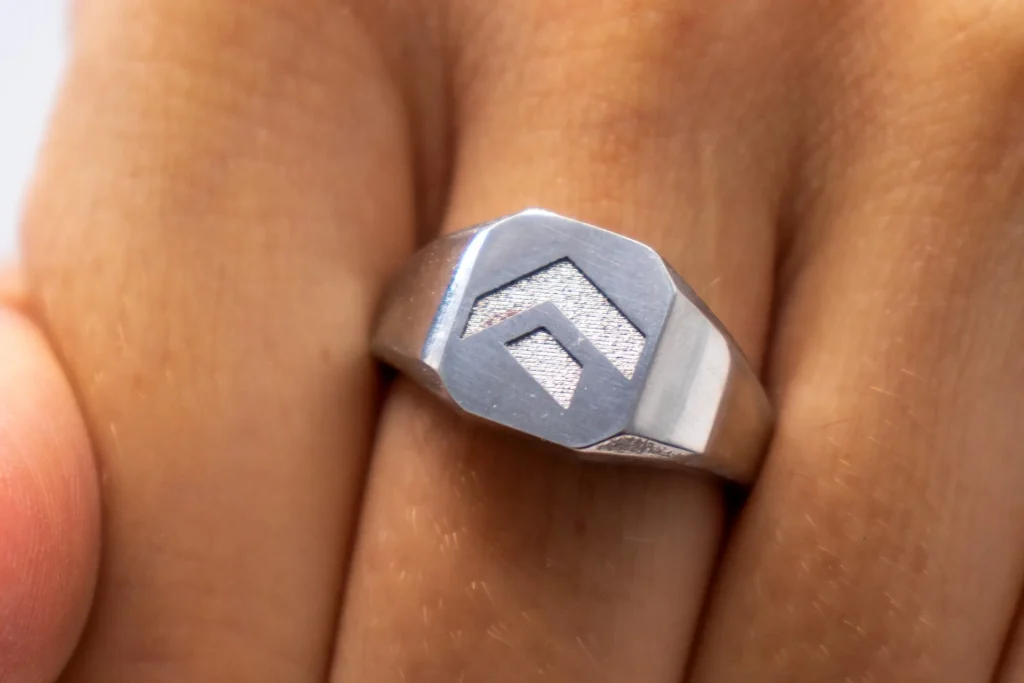

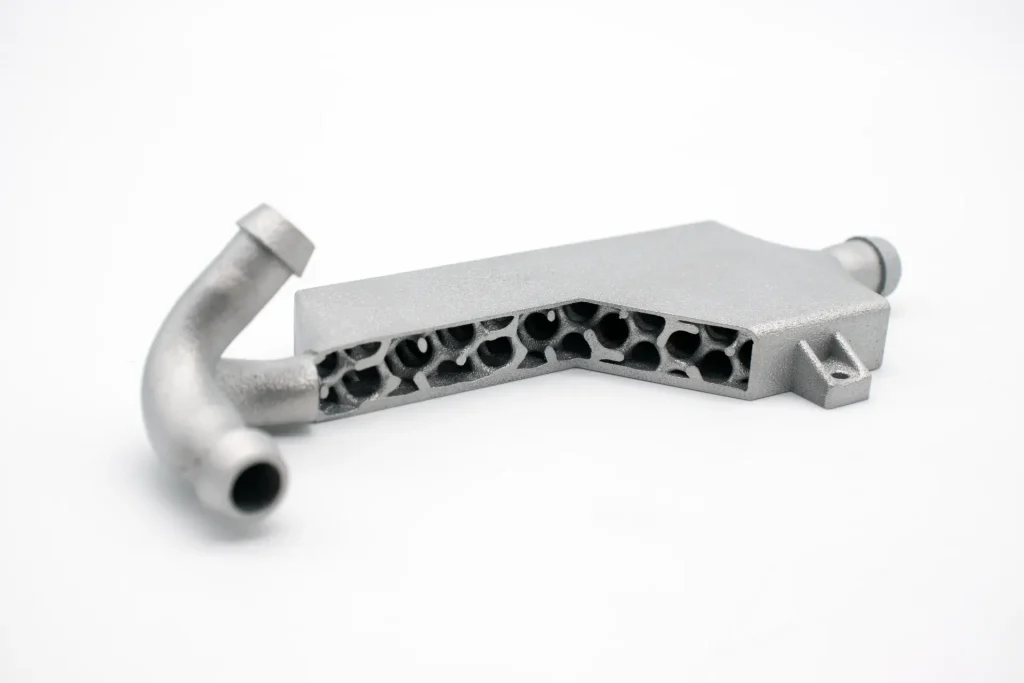

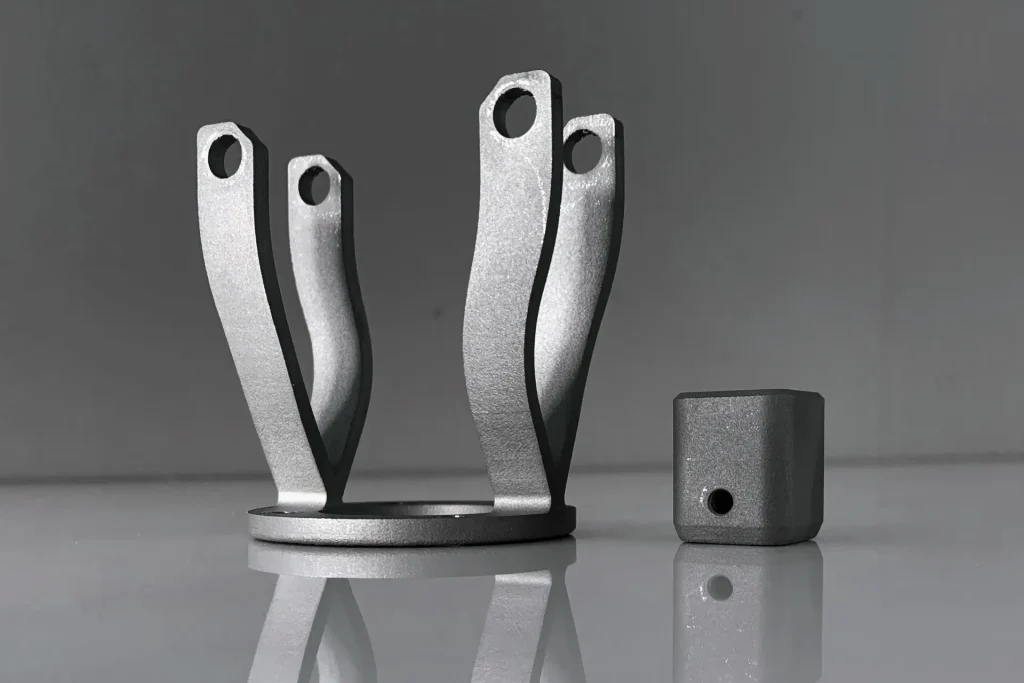

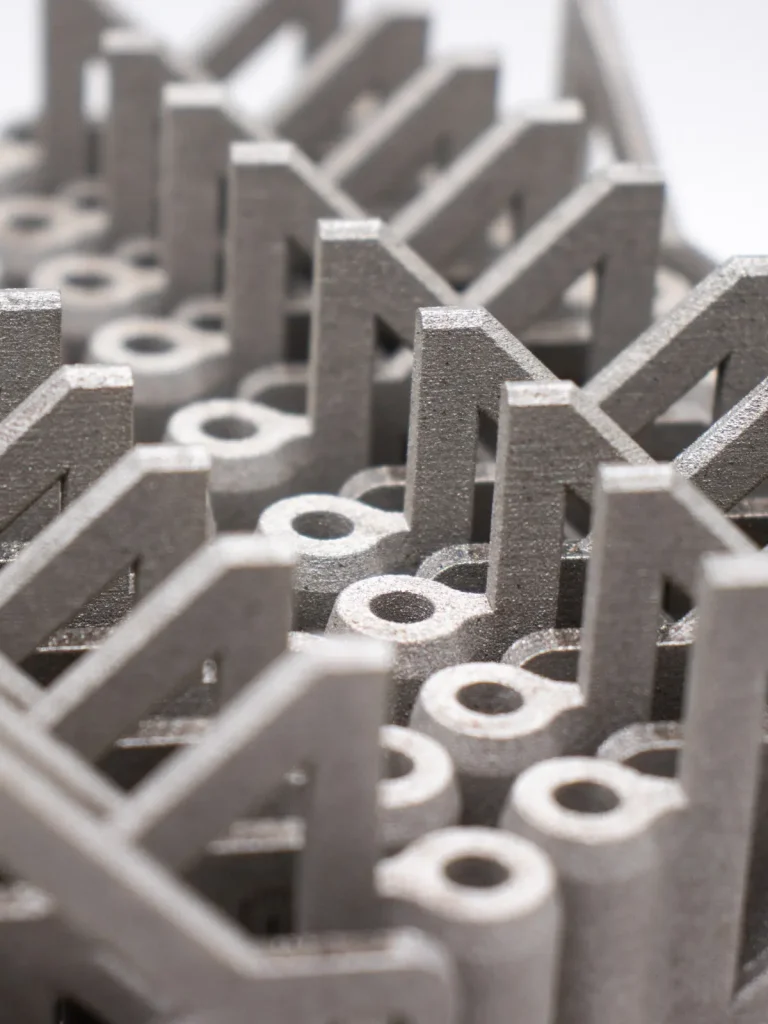

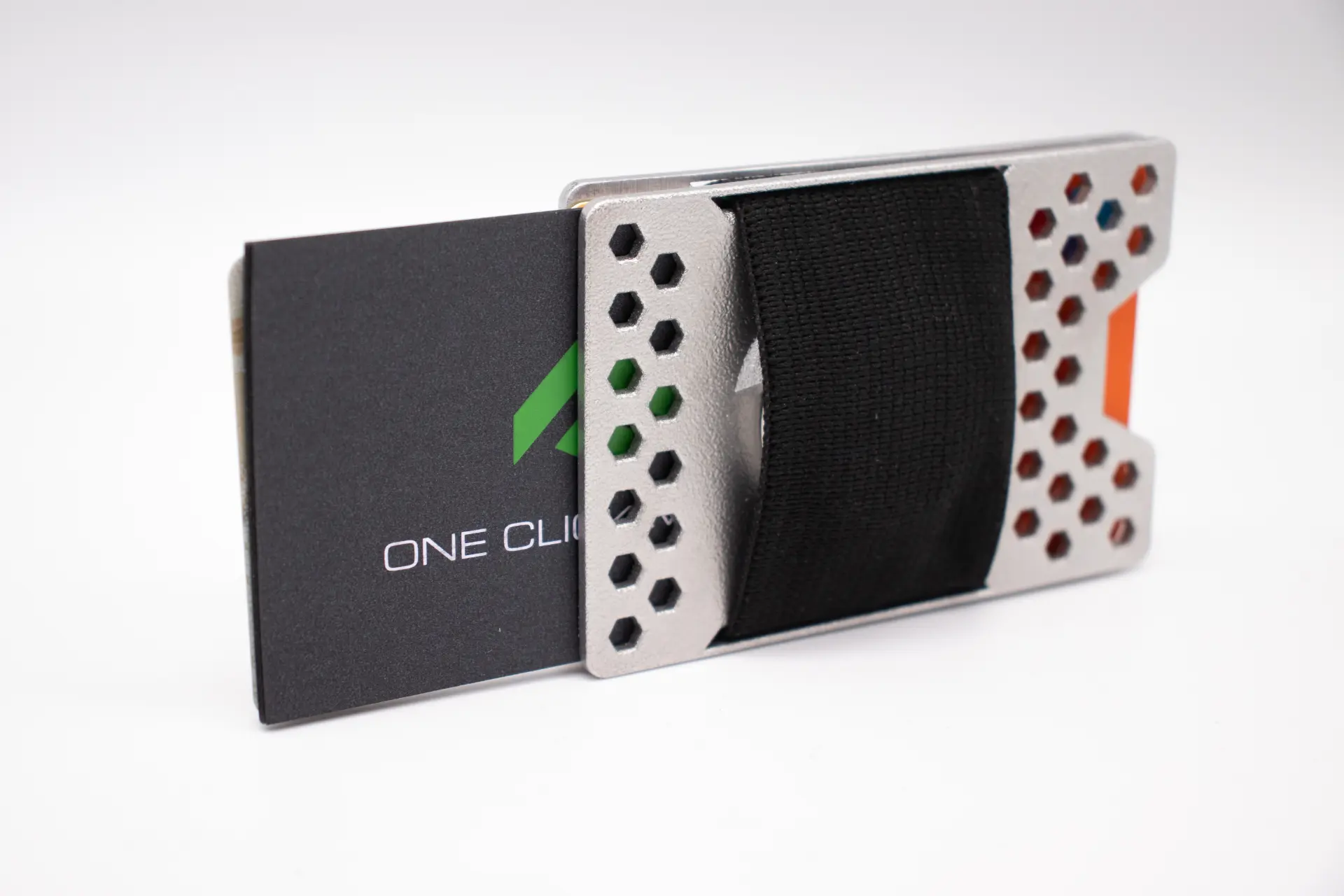

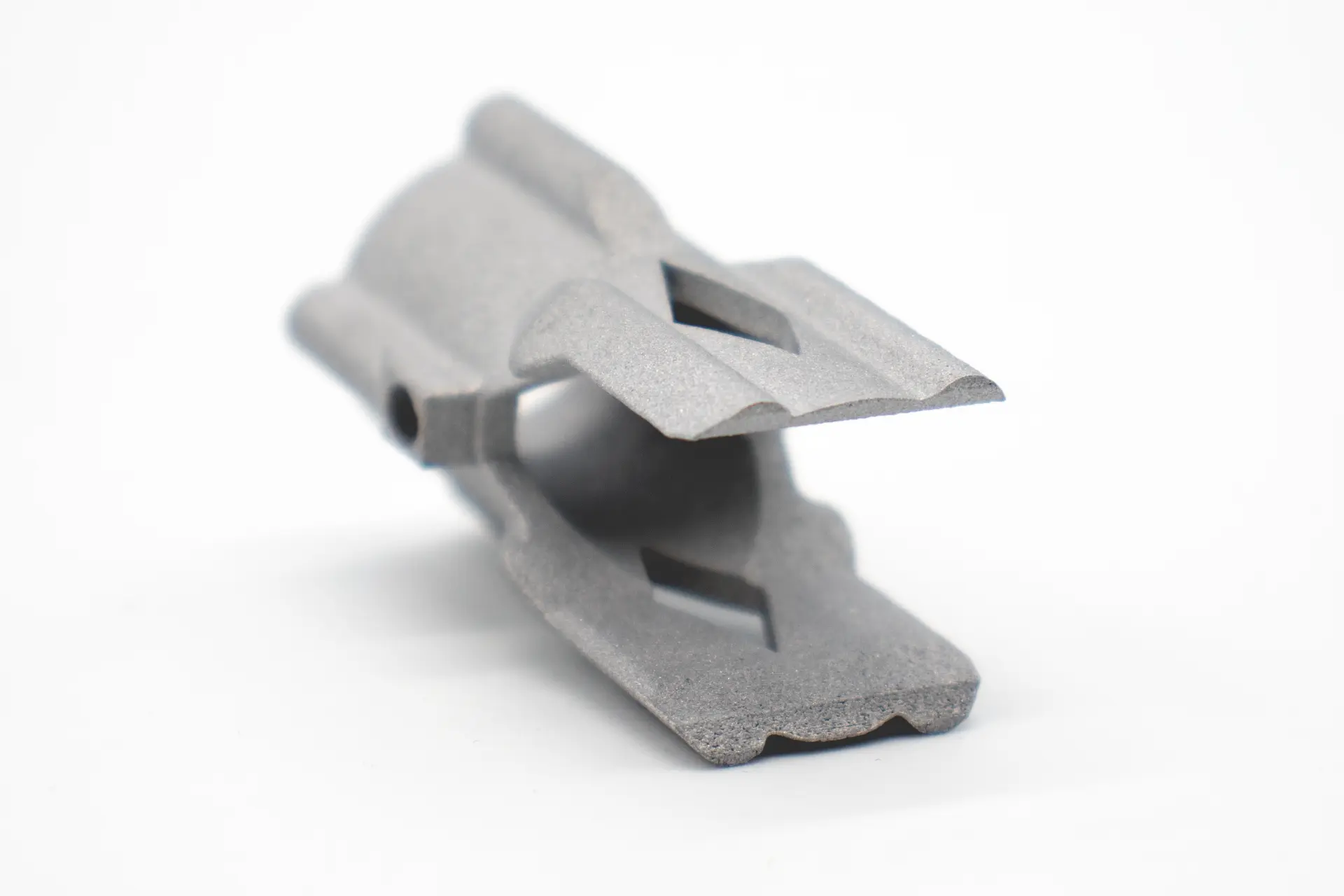

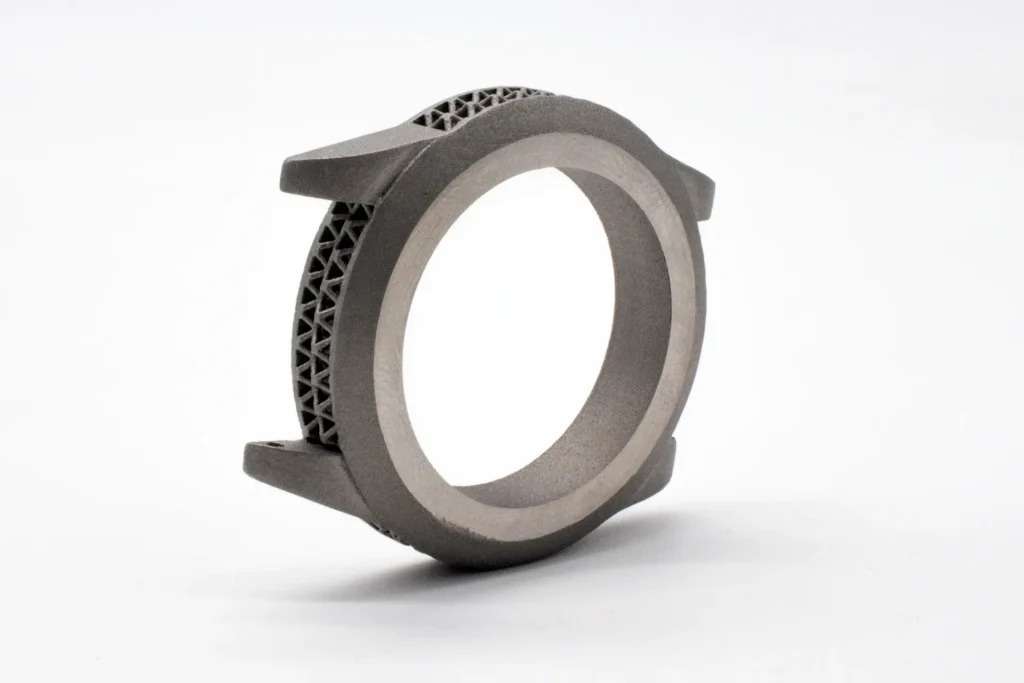

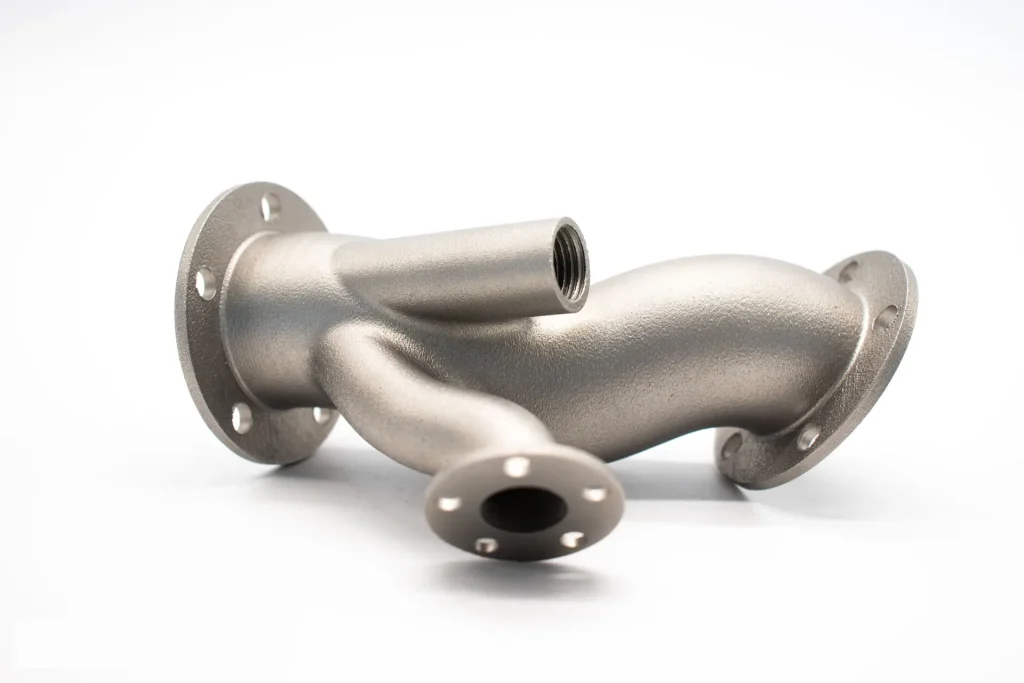

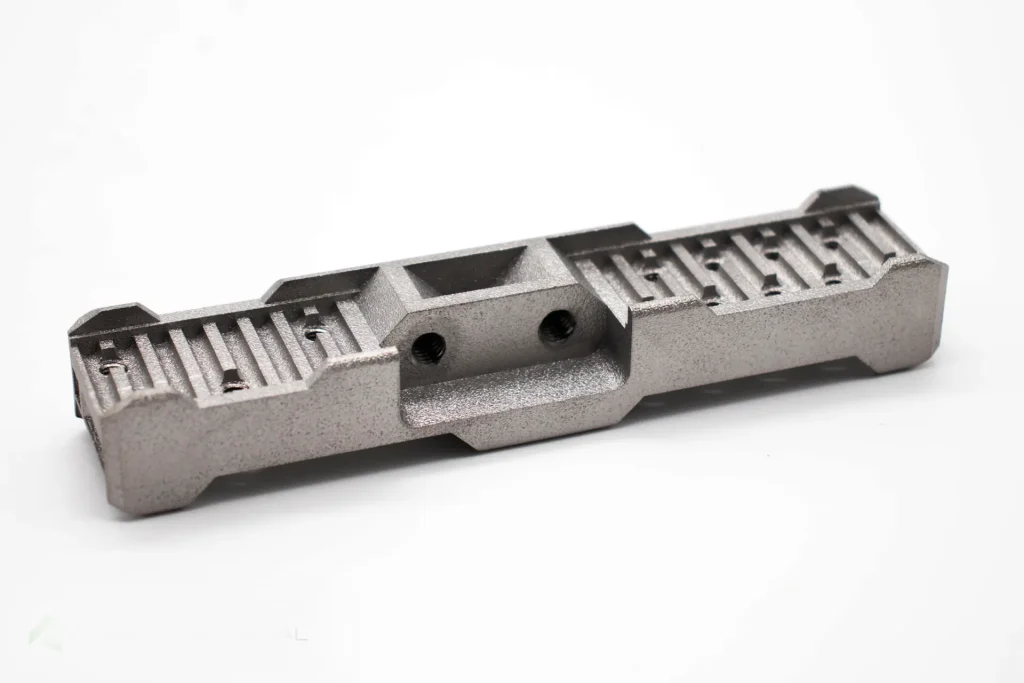

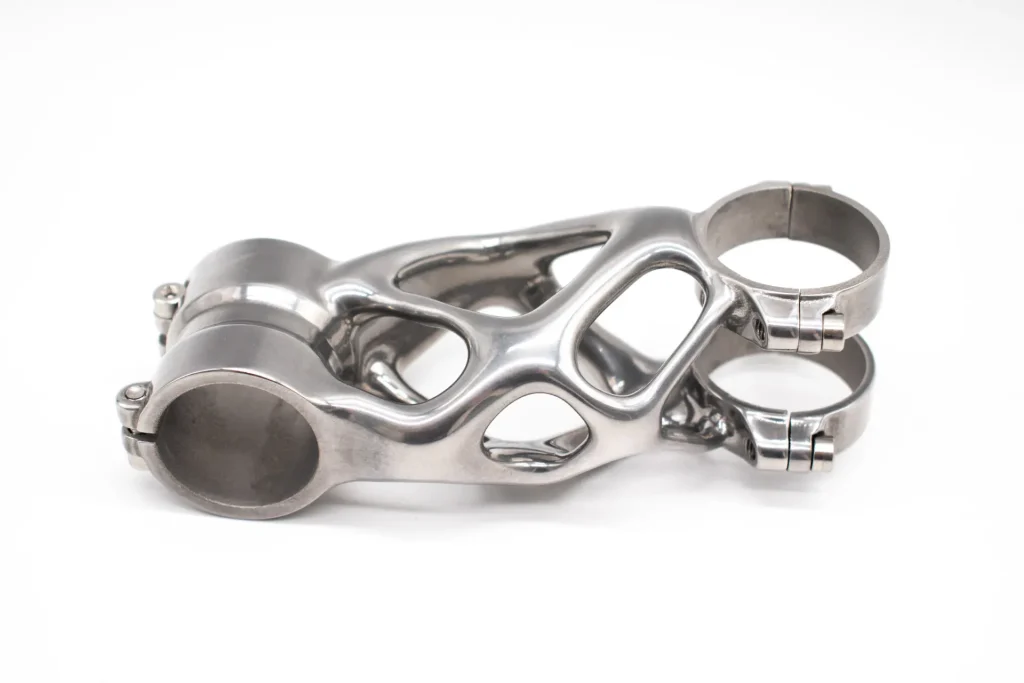

Example 3D Printed Parts
