Stratasys J850™ Core
Professional PolyJet™ for Functional Prototyping
The Stratasys J850 Core makes professional PolyJet 3D printing more accessible for engineering teams and prototyping labs that need fast, accurate, multi-material prototypes, without paying for full-color capabilities they may not need.
Built for versatility, functionality, and affordability, J850 Core gives teams a more accessible path to professional PolyJet for realistic multi-material prototypes that support form, fit, and functional validation.
Stratasys J850™ Core Features Features
Stratasys J850™ Core Specifications
| Feature | Specification |
|---|---|
| Model Materials | Tough: ToughONE for excellent impact resistance and flexibility Rigid Opaque: VeroUltra family in black and white Rubberlike: Agilus family of flexible materials Transparent: VeroUltraClear Draft Materials: DraftGrey |
| Digital Model Materials | Composite materials including ToughONE Reinforced for high dimensional stability, Digital ABS Plus and Digital ABS2 Plus (ivory), rubberlike blends in multiple Shore A values, and translucent shade tints |
| Support Material | SUP705B™ |
| Build Size | 490 × 390 × 200 mm (19.3 × 15.35 × 7.9 in.) |
| Layer thickness | Horizontal build layers down to 14 microns (0.00055 in.) |
| Network Connectivity | LAN – TCP/IP |
| System Size & Weight | System: 1400 × 1260 × 1100 mm (55.1 × 49.6 × 43.4 in.); 430 kg (948 lbs.) Material Cabinet: 1119 × 656 × 637 mm (44 × 25.8 × 25.1 in.); 153 kg (337 lbs.) |
| Operating Conditions | Temperature: 18–25 °C (64–77 °F) Relative humidity: 30–70% (non-condensing) |
| Power Requirements | 100–120 VAC, 50–60 Hz, 13.5 A, 1‑phase 220–240 VAC, 50–60 Hz, 7 A, 1‑phase |
| Regulatory Compliance | CE, FCC, EAC |
| Software | GrabCAD Print |
| Build Modes | High Quality: Up to 3 base resins, 14‑micron resolution High Speed: Up to 3 base resins, 14‑micron resolution |
| Accuracy | Typical deviation from STL dimensions for rigid materials: Under 100 mm: ±100 μm Above 100 mm: ±200 μm or ±0.06% of part length (whichever is greater) |
Materials available for the Stratasys J850™ Core
Learn more about Stratasys J850 Core materials
Agilus 30
Agilus 30 is a PolyJet Photopolymer 3D printing material with superior tear-resistance, capable of withstanding repeated flexing and bending.
Stratasys J850™ Core Benefits
Accessible Professional PolyJet Performance
More accessible professional PolyJet 3D printing for teams that need core performance, not full-color and complexity.
True Multi‑Material Functional Prototyping
Functional prototypes with rigid, flexible, transparent, and tough materials in the same print.
Faster Iteration with High‑Speed Printing
Faster iteration cycles with high-speed modes and a large tray capacity.
Office‑Friendly Workflow, Simplified
Simplified, office-friendly workflow with minimal post-processing and GrabCAD Print Pro support.

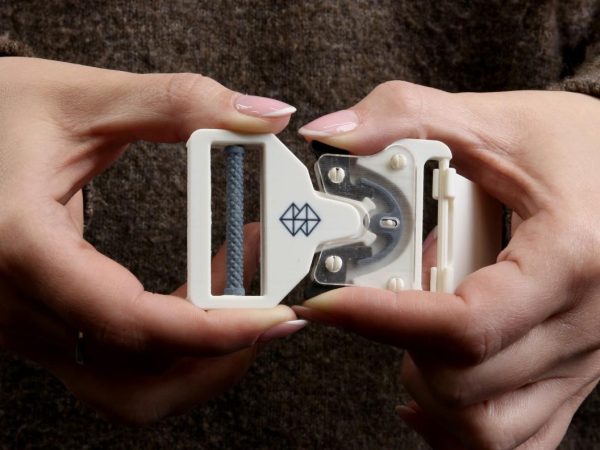

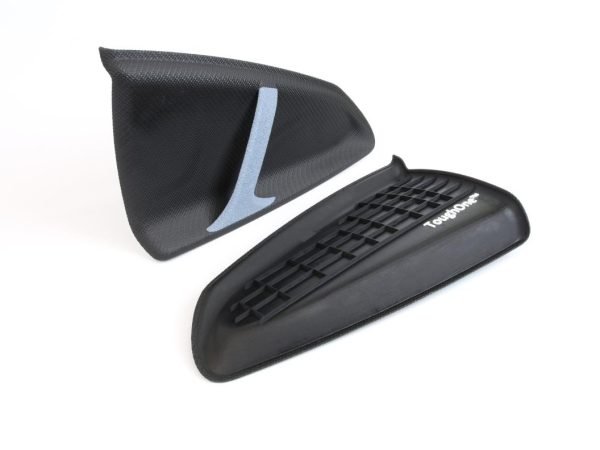

Stratasys J850 Core Example Parts
